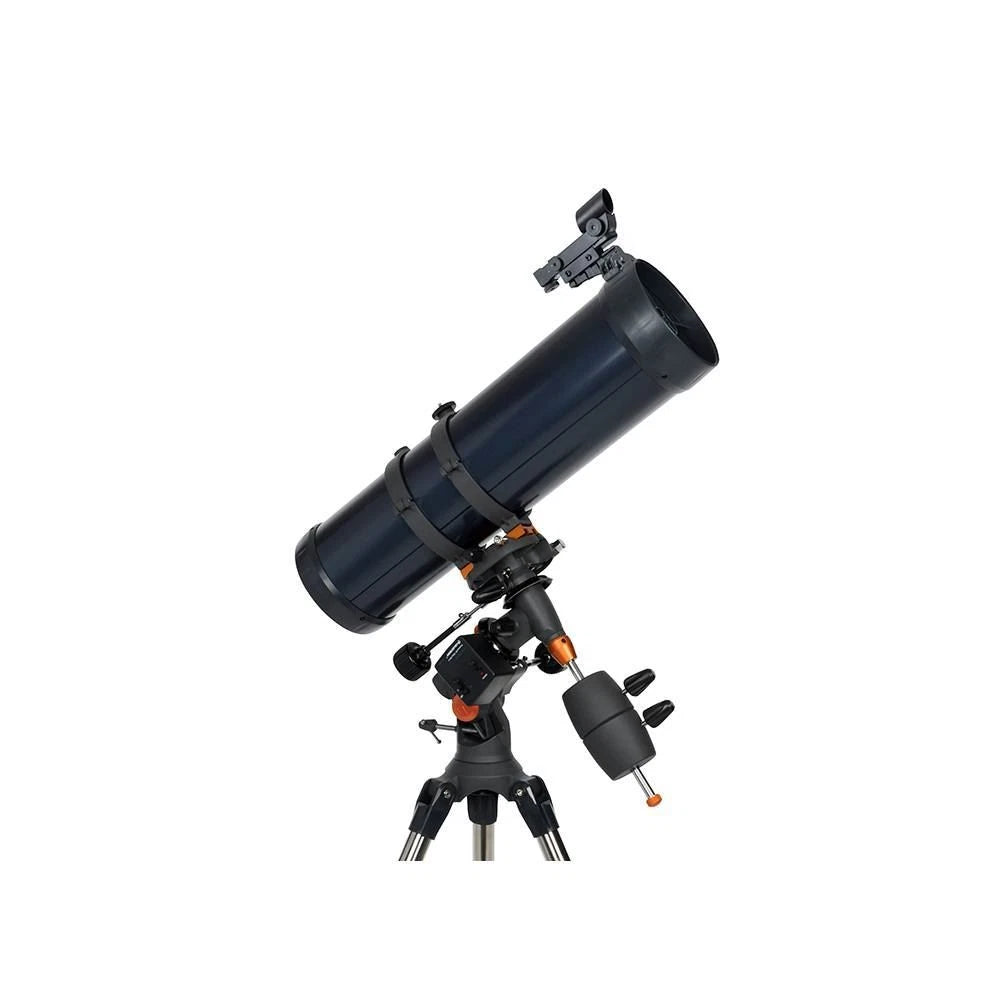

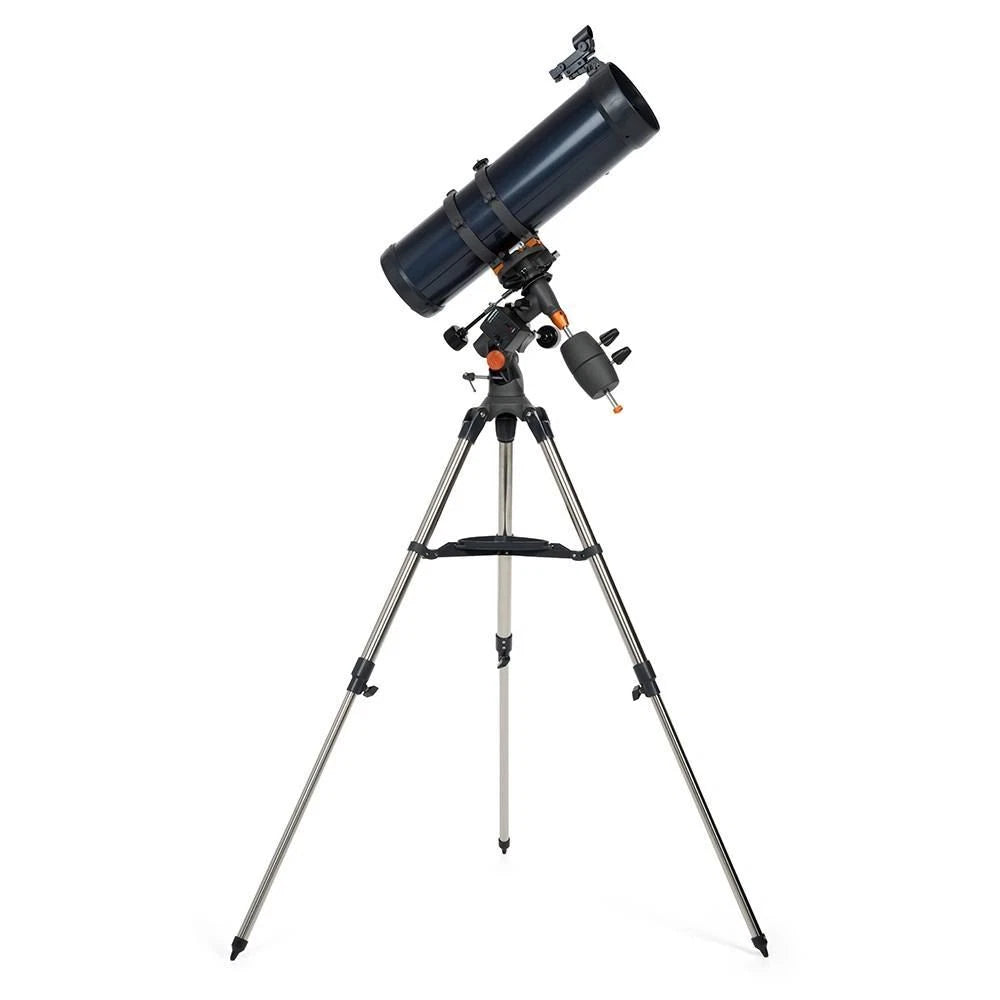

Celestron Astromaster 130EQ AstroTelescope
Product Description
The Celestron AstroMaster 130EQ is a beginner-friendly Newtonian reflector telescope designed to deliver bright, high-contrast views of the Moon, planets, and brighter deep-sky objects. Built around a 130 mm aperture optical system and mounted on a manual German equatorial mount, it provides users with a hands-on introduction to astronomical observation, celestial tracking, and basic astrophotography principles.
This telescope bridges the gap between simple entry-level optics and more advanced observational systems by offering a larger aperture than typical beginner scopes while maintaining a straightforward mechanical design.
Newtonian Reflector Optical System
At the core of the AstroMaster 130EQ is a 130 mm Newtonian reflector optical tube using a spherical primary mirror design.
This optical system:
- Captures a significant amount of light compared to smaller beginner telescopes
- Produces bright, high-contrast images of lunar and planetary targets
- Eliminates chromatic aberration common in refractor telescopes
- Delivers wide-field views ideal for star clusters and nebulae
The telescope operates at a fast focal ratio, enabling wide-field deep-sky observation and relatively short exposure imaging potential for beginners experimenting with astrophotography.
The aluminum-coated mirrors are enhanced with protective overcoating to improve reflectivity and durability.
Optical Performance and Observing Experience
The AstroMaster 130EQ is designed for visual astronomy users who want to explore:
- Detailed lunar surface structures including craters, maria, and ridges
- Planetary features such as Jupiter’s cloud bands and moons
- Saturn’s ring system under steady atmospheric conditions
- Bright nebulae such as Orion and large star clusters
Due to its aperture size, it is capable of resolving fine detail in solar system objects while also gathering enough light to reveal faint deep-sky objects under dark skies.
Stars appear as diffraction-limited points, while extended deep-sky objects appear as faint, structured patches of light depending on sky conditions.

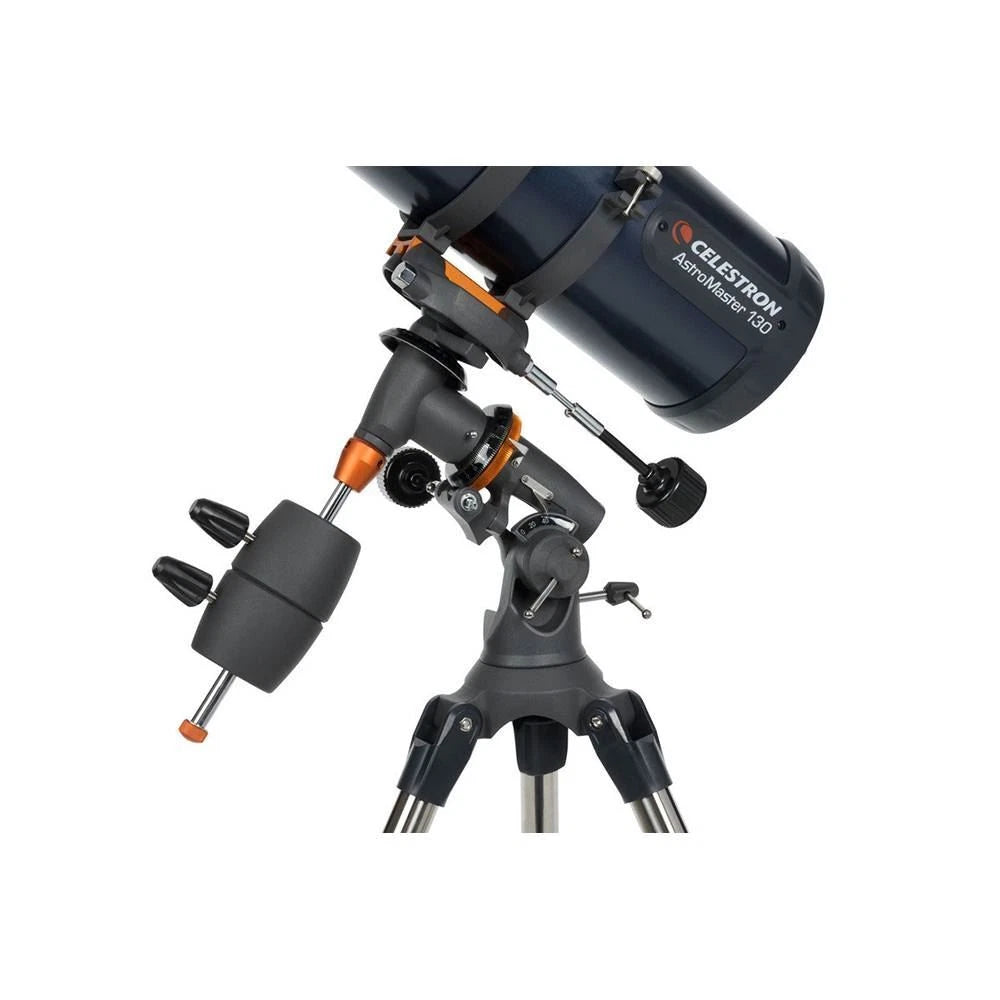

German Equatorial Mount System
The telescope is paired with a CG-3 German equatorial mount, designed to simulate Earth’s rotation for smoother object tracking.
Key features include:
- Right Ascension and Declination axes for celestial coordinate navigation
- Manual slow-motion control knobs for fine tracking adjustments
- Setting circles for locating objects using sky coordinates
- Adjustable steel tripod for stability and height customization
- Accessory tray for added structural rigidity and storage
The mount requires manual polar alignment, which introduces users to equatorial tracking techniques used in professional astronomy systems.
Included Accessories
The AstroMaster 130EQ includes essential optical accessories for immediate use:

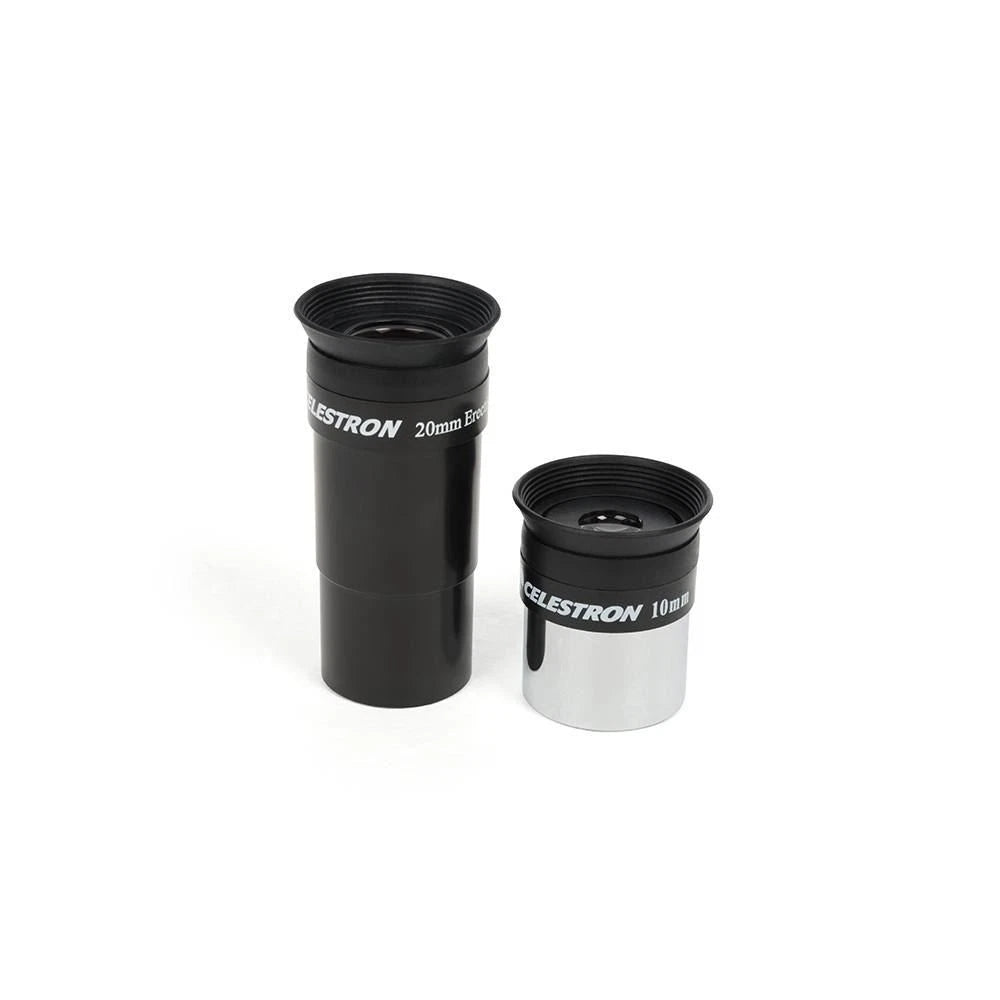

- 20 mm eyepiece with built-in erect image corrector for upright terrestrial viewing
- 10 mm eyepiece for higher magnification planetary observation
- StarPointer red-dot finderscope for object alignment and targeting
- Standard aluminum tripod with accessory tray
These accessories allow users to begin observing immediately after assembly without additional purchases.
Mechanical Construction and Design
The AstroMaster 130EQ is designed with portability and beginner usability in mind:
- Aluminum optical tube assembly for reduced weight
- Pre-assembled mount for quick setup
- Adjustable steel tripod legs for stability
- Manual control system for intuitive operation
The design prioritizes accessibility while maintaining enough structural rigidity for stable visual observation.
Observational Applications
This telescope is best suited for:
- Lunar observation with high-contrast surface detail
- Planetary viewing of Jupiter, Saturn, and Mars
- Bright deep-sky objects such as star clusters and nebulae
- Entry-level astrophotography using smartphone adapters or basic camera setups
It is not a professional imaging system but can be used to learn foundational astrophotography techniques.
Educational Value
The AstroMaster 130EQ is widely used as a learning instrument because it introduces:
- Equatorial coordinate systems and celestial navigation
- Manual tracking of moving celestial objects
- Basic optical alignment and collimation principles
- Understanding magnification and focal length relationships
It is particularly effective for users transitioning from naked-eye astronomy to telescope-based observation.
Specifications
Optical System
Optical Design: Newtonian Reflector
Primary Mirror Type: Spherical
Aperture: 130 mm
Focal Length: 650 mm
Focal Ratio: f/5
Optical Tube Material: Aluminum
Secondary Mirror Obstruction: 44 mm
Secondary Mirror Obstruction by Diameter: 34 percent
Secondary Mirror Obstruction by Area: 11 percent
Optical Coatings: Aluminum with protective SiO₂ overcoat
Performance
Highest Useful Magnification: 307x
Lowest Useful Magnification: 19x
Limiting Stellar Magnitude: 13.1
Rayleigh Resolution: 1.07 arc seconds
Dawes Resolution: 0.89 arc seconds
Light Gathering Power: 345 times human eye
Resolving Power: 0.9 arc seconds (Dawes approximation)
Eyepieces and Accessories
Eyepiece 1: 20 mm with erect image corrector
Magnification: 33x
Eyepiece 2: 10 mm
Magnification: 65x
Finderscope: StarPointer red-dot finder
Barlow Lens: Not included
Mount and Tripod
Mount Type: German Equatorial Mount (CG-3 class)
Tracking Mode: Manual slow-motion controls
Right Ascension and Declination Controls: Included
Tripod Material: Steel
Accessory Tray: Included
Dovetail Compatibility: CG-5
Physical Specifications
Optical Tube Length: 552 mm
Optical Tube Diameter: 160.5 mm
Optical Tube Weight: 3.5 kg
Total Kit Weight: 7.7 kg
Tripod Height Range: 812.8 mm to 1295.4 mm
