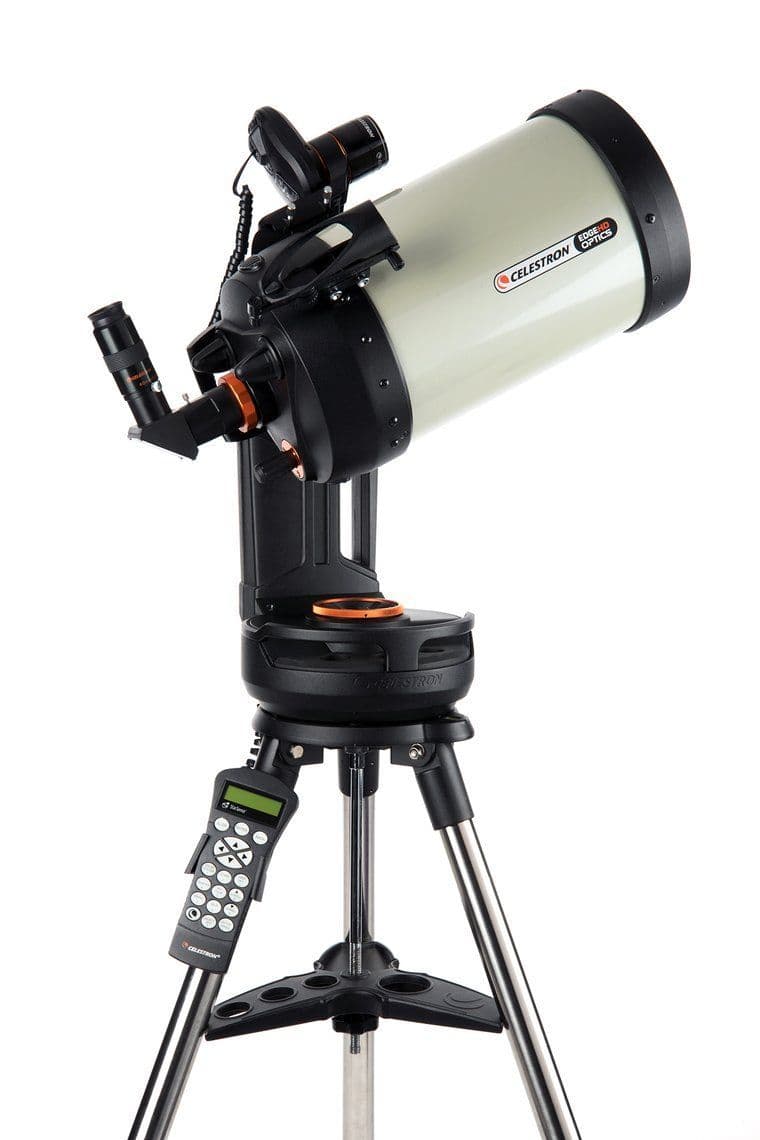

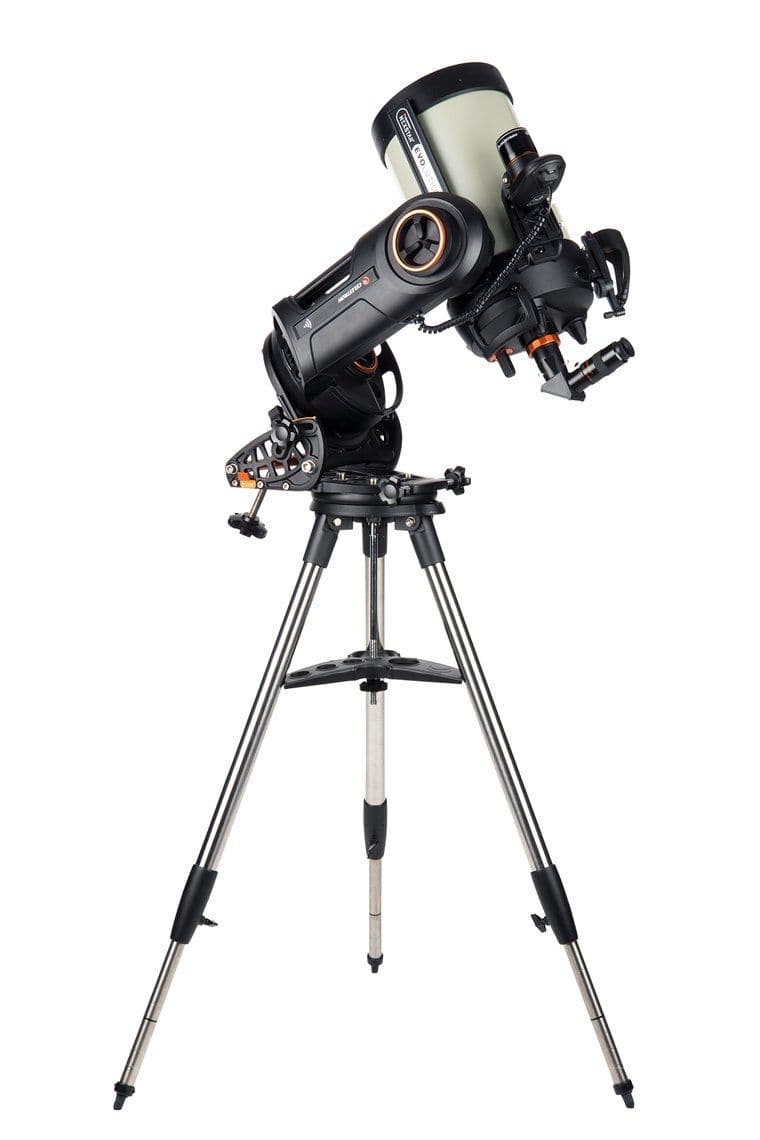

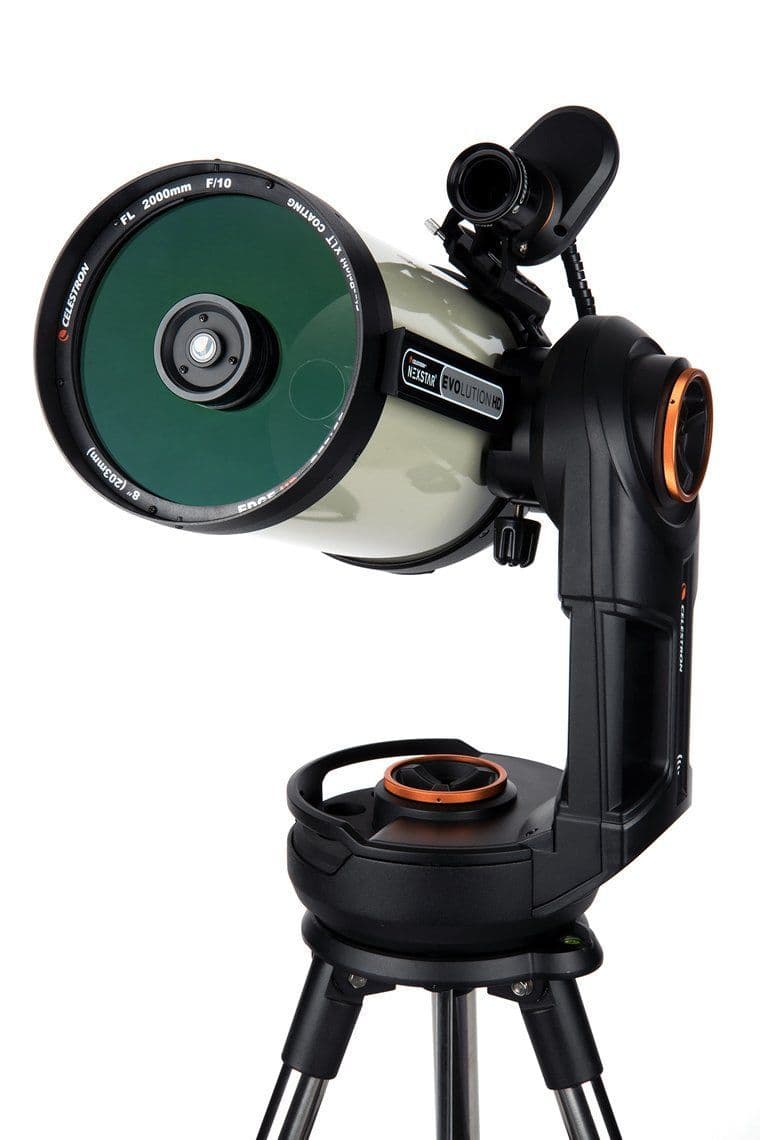

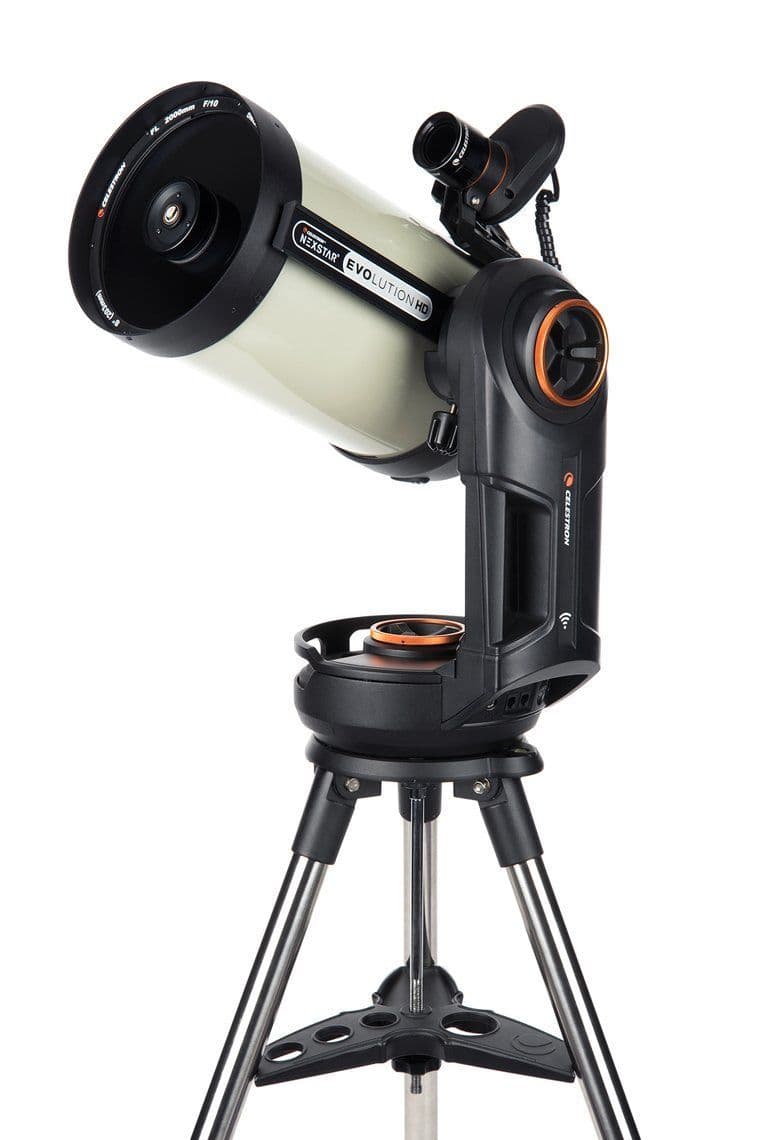

Celestron NexStar Evolution 8" Edge HD with StarSense
Product Description
- The Celestron NexStar Evolution 8" Edge HD with StarSense is a flagship-grade, fully computerized telescope system designed for astronomers who demand uncompromising optical performance, intelligent automation, and seamless wireless control. Combining EdgeHD flat-field optics, StarSense automated alignment, and the highly refined NexStar Evolution mount, this system functions as a complete portable observatory capable of delivering both visually stunning deep-sky views and high-quality astrophotography potential.
- This model stands at the intersection of optical precision and modern smart technology, removing traditional barriers such as manual alignment, complex setup procedures, and external power dependencies.
Advanced EdgeHD Optical System
At the core of this telescope is the 203.2mm EdgeHD optical tube, engineered as a premium flat-field aplanatic system.
Unlike standard Schmidt-Cassegrain designs, the EdgeHD system is specifically corrected to:
- Deliver a flat focal plane across the entire field of view
- Eliminate off-axis coma and field curvature
- Produce pinpoint stars from center to edge of the image
- Support high-resolution imaging across wide fields
This makes the system suitable not only for visual astronomy but also for serious entry-to-intermediate astrophotography, especially when paired with focal reducers or HyperStar configurations.
The StarBright XLT multi-coating system enhances light transmission and contrast, ensuring brighter deep-sky objects, sharper planetary detail, and improved color fidelity.
StarSense Automatic Alignment System
Integrated StarSense technology transforms telescope setup into a fully automated process.
Instead of manual star alignment, the system:
- Captures images of the night sky using an integrated optical camera system
- Analyzes star patterns in real time
- Calculates precise location, time, and orientation
- Automatically aligns the telescope without user intervention
Once complete, the telescope is ready for GoTo operation within minutes.
This system dramatically reduces setup complexity and eliminates one of the most technical barriers in amateur astronomy.
NexStar Evolution Mount – Engineering and Control
The NexStar Evolution mount is a high-torque, precision-engineered fork mount designed for stability and smooth tracking.
Key engineering elements include:
- Precision-machined worm gears for both axes
- Smooth altitude-azimuth motion system
- Heavy-duty fork arm structure for vibration resistance
- Integrated internal lithium-iron phosphate power system
- Multi-speed motor drive system supporting tracking and slewing
The mount supports sidereal, lunar, and solar tracking modes and is capable of both alt-azimuth and equatorial operation when paired with a wedge system.
Built-In WiFi and App-Based Control
This system eliminates the need for traditional hand controllers during normal operation.
Using built-in WiFi connectivity, users can:
- Connect directly via smartphone or tablet
- Control telescope movement in real time
- Select celestial objects from a digital star map
- Execute automated GoTo slews
- Adjust tracking and alignment settings wirelessly
The experience is fully integrated with modern astronomy apps, providing a digital observatory interface that replaces traditional control systems.
StarSense + Smart Observing Workflow
The combination of StarSense automation and app control creates a streamlined observing workflow:
- Power on telescope
- Automatic sky scan and alignment begins
- System builds accurate sky model
- User selects target via app
- Telescope slews automatically
- Object tracking begins instantly
This workflow minimizes downtime and maximizes observing efficiency, particularly for beginners or casual observers who want immediate results.
Power System and Field Independence
The telescope includes an internal rechargeable lithium-iron phosphate battery system, designed for long-duration field use.
Key advantages:
- Fully integrated internal power system
- Extended observing sessions without external power packs
- Stable voltage output for motors and electronics
- Reduced cable clutter during operation
This design makes the system highly portable for field astronomy, star parties, and remote observation sites.
Astrophotography Capability
While primarily optimized for visual astronomy, the system supports a wide range of imaging workflows:
- Planetary imaging with high magnification stability
- Deep-sky imaging with EdgeHD optical correction
- Fast optical imaging when used with compatible fast-focus configurations
- Long exposure capability when mounted in equatorial configuration with a wedge
The optical system is also compatible with advanced accessories such as focal reducers and imaging cameras.
Included Accessories and Out-of-the-Box Setup
The telescope package includes essential observing accessories:
- 40 mm Plössl eyepiece
- 13 mm Plössl eyepiece
- StarSense AutoAlign module
- StarPointer Pro finder
- 1.25-inch star diagonal
- Standard visual back
These components allow immediate use without requiring additional purchases.
User Experience and Design Philosophy
This telescope is designed around three core principles:
Automation
Minimizes setup complexity and eliminates manual alignment.
Optical Precision
EdgeHD optics ensure high-resolution, flat-field viewing performance.
Connectivity
Smart device integration replaces traditional control interfaces.
The result is a system that is both powerful enough for advanced astronomy and accessible enough for beginners entering the hobby.
Specifications
Optical System
Optical Design: EdgeHD Schmidt-Cassegrain
Aperture: 203.2 mm
Focal Length: 2032 mm
Focal Ratio: f/10
Optical Tube Material: Aluminum
Optical Coatings: StarBright XLT
Secondary Mirror Obstruction: 64 mm
Central Obstruction Ratio: 31 percent
Performance
Highest Useful Magnification: 480x
Lowest Useful Magnification: 29x
Limiting Stellar Magnitude: 14
Rayleigh Resolution: 0.69 arc seconds
Dawes Resolution: 0.57 arc seconds
Light Gathering Power: 843 times human eye
Optical Accessories
Eyepiece 1: 40 mm Plössl
Magnification: 51x
Eyepiece 2: 13 mm Plössl
Magnification: 156x
Finderscope: StarPointer Pro
Diagonal: 1.25-inch star diagonal
Mount and Drive System
Mount Type: Computerized Altitude-Azimuth fork arm
Tracking Modes: Alt-Az, Solar, Lunar
Slew Speed: Multiple-speed motor drive system
Power System: Internal lithium-iron phosphate battery
Auxiliary Ports: 4 expansion ports
Dovetail Compatibility: CG-5
Physical Specifications
Optical Tube Length: 432 mm
Optical Tube Diameter: 238 mm
Optical Tube Weight: 6.35 kg
Mount Head Weight: 7 kg
Tripod Weight: 5.44 kg
Instrument Load Capacity: 11 kg
Height Range: 1193.8 mm to 1752.6 mm
