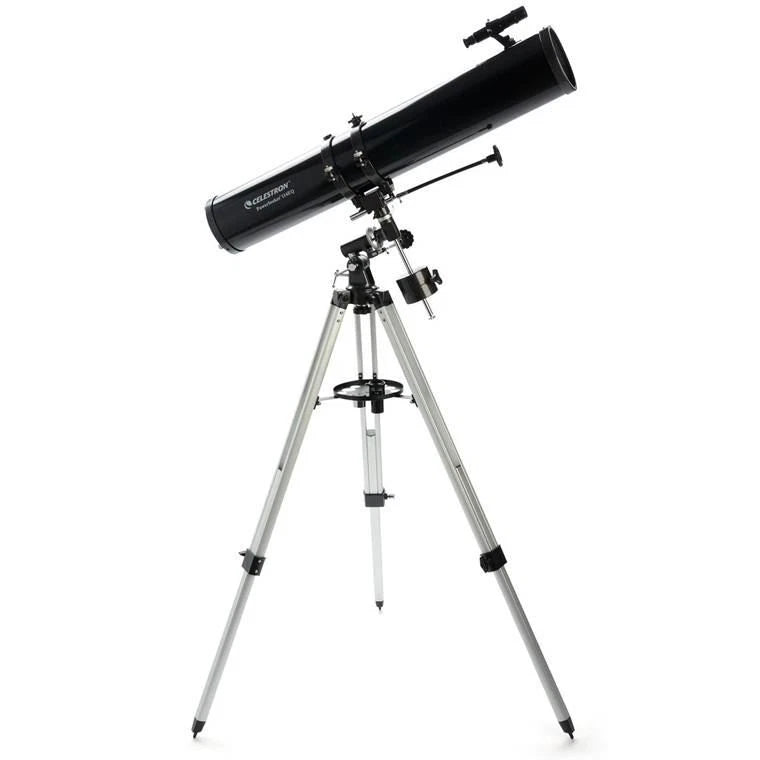

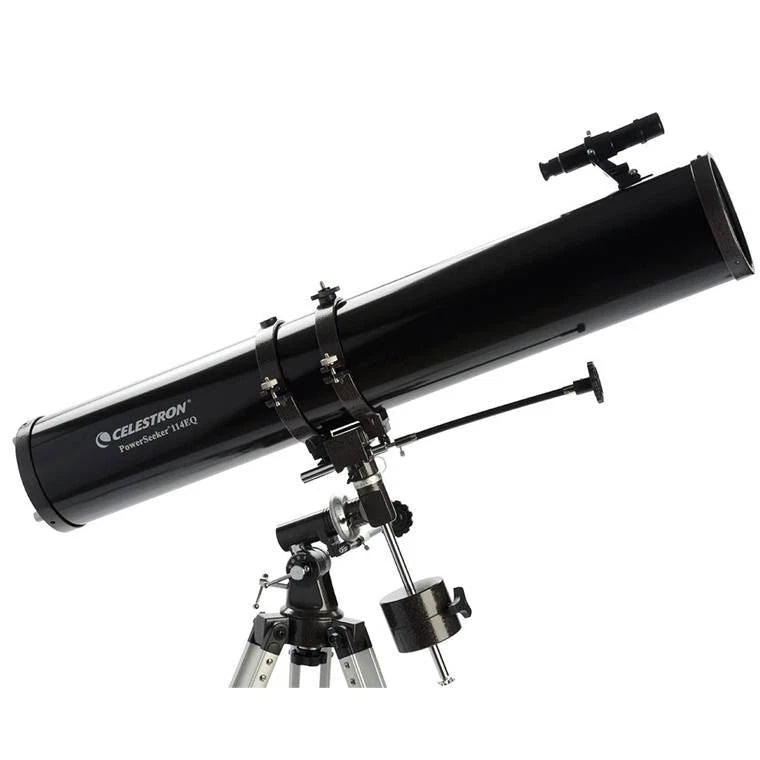

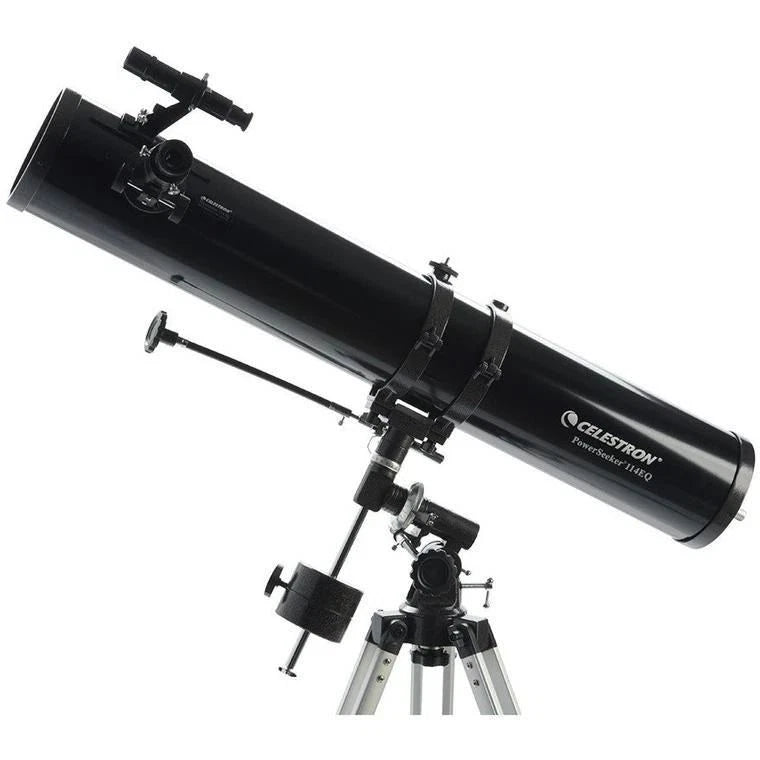

Celestron PowerSeeker 114EQ Newtonian
Product Description
The Celestron PowerSeeker 114EQ is a manually operated Newtonian reflector telescope designed to introduce beginners to the fundamentals of observational astronomy while still offering enough optical capability for meaningful lunar, planetary, and bright deep-sky viewing. Built around a 114 mm aperture optical system, this telescope balances light-gathering power, focal length precision, and affordability in a compact equatorial-mounted configuration.
It is engineered to provide users with a hands-on learning experience of celestial navigation, equatorial tracking, and optical alignment, making it a classic entry point into serious backyard astronomy.
Newtonian Reflector Optical System
At the heart of the PowerSeeker 114EQ is a Newtonian reflector optical tube assembly featuring a 114 mm spherical primary mirror.
This optical design:
- Collects significantly more light than the unaided human eye
- Delivers strong performance on lunar and planetary targets
- Provides improved brightness for star clusters and brighter nebulae
- Uses a reflective mirror system that avoids chromatic aberration
The telescope’s 900 mm focal length produces a moderate focal ratio that supports both wide-field viewing and higher-magnification planetary observation when paired with the included eyepieces and Barlow lens.
While the primary mirror is spherical rather than parabolic, the long focal ratio helps minimize spherical aberration for general visual astronomy use.
Optical Performance and Viewing Experience
The PowerSeeker 114EQ is optimized for beginners who want to observe:
- The Moon in high contrast with detailed crater structure
- Jupiter with visible cloud bands and Galilean moons
- Saturn’s rings under stable atmospheric conditions
- Bright star clusters and deep-sky objects such as the Orion Nebula
The system is capable of moderate magnification ranges depending on eyepiece configuration, allowing users to explore both wide-field sky scanning and more detailed planetary study.

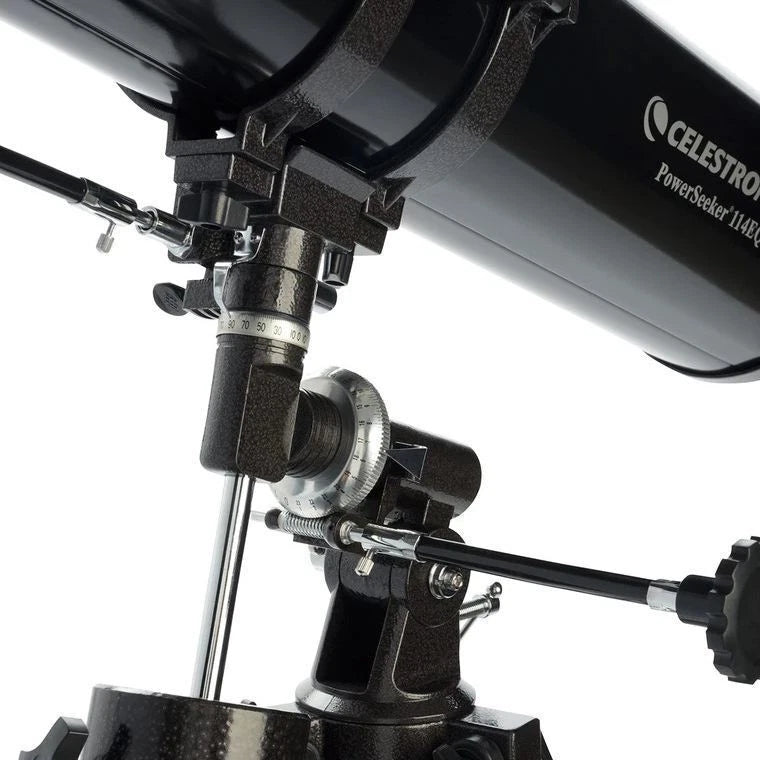

Manual German Equatorial Mount System
The telescope is mounted on a German equatorial mount (EQ) designed to simulate celestial motion tracking.
Key features include:
- Right Ascension and Declination axes for sky navigation
- Setting circles for locating celestial coordinates
- Manual slow-motion tracking controls
- Adjustable aluminum tripod with full-height extension
- Accessory tray for eyepieces and stability reinforcement
This mount requires manual polar alignment, providing an educational introduction to celestial coordinate systems and tracking mechanics.

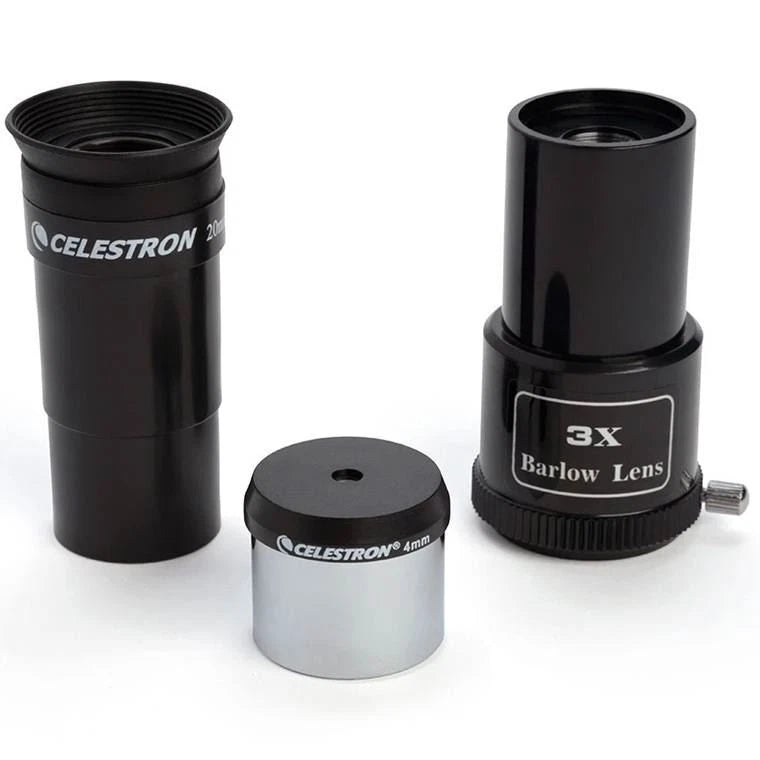

Included Optical Accessories
The PowerSeeker 114EQ comes equipped with essential observing accessories:
- 20 mm eyepiece with built-in erect image corrector for upright terrestrial viewing
- 4 mm high-power eyepiece for close planetary observation
- 3× Barlow lens to increase magnification range

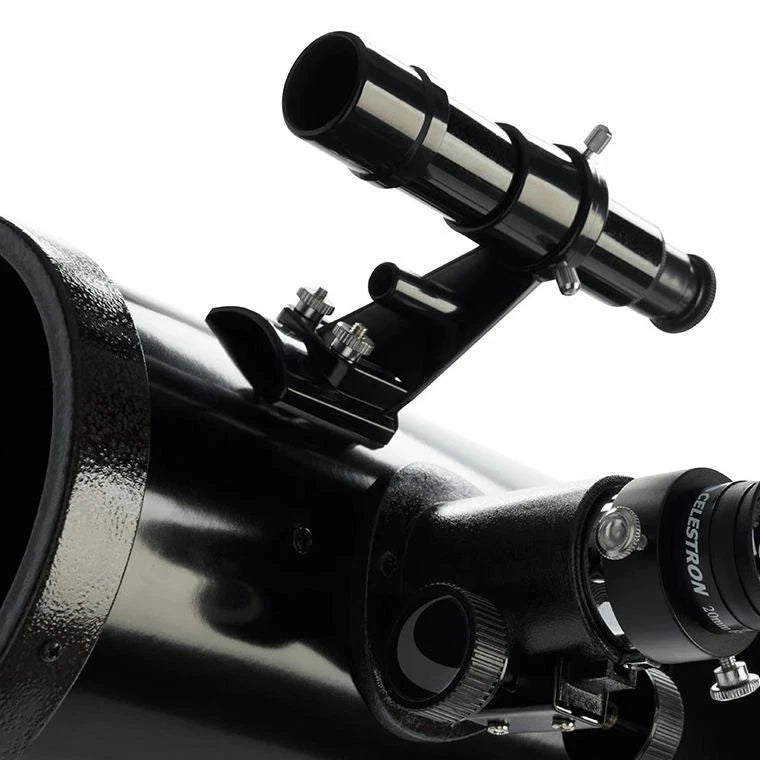

- 5×24 optical finderscope for target acquisition
These accessories provide a full beginner-level observing toolkit straight out of the box.
Mechanical Design and Build Quality
The telescope features a lightweight but functional construction designed for portability and ease of setup.
Key structural elements include:
- Aluminum optical tube assembly
- Adjustable steel or aluminum tripod depending on configuration
- Integrated accessory tray for stability and storage
- Manual equatorial mount head with slow-motion controls
The system is designed for quick assembly without specialized tools, making it suitable for first-time users.
Observational Use Cases
The PowerSeeker 114EQ is best suited for:
- Lunar surface exploration with high contrast detail
- Planetary observation under stable atmospheric conditions
- Bright deep-sky objects such as nebulae and star clusters
- Basic astrophotography experiments using smartphone adapters
While not intended for advanced long-exposure imaging, it can produce satisfying results for casual planetary photography and visual astronomy learning.
Educational Value
Beyond observation, this telescope serves as a learning instrument for:
- Understanding equatorial coordinate systems
- Learning manual tracking of celestial objects
- Developing collimation and optical alignment skills
- Building foundational astronomy observation techniques
It is widely used as a first telescope for users transitioning from naked-eye stargazing to structured astronomical observation.
Specifications
Optical System
Optical Design: Newtonian Reflector
Primary Mirror Type: Spherical
Aperture: 114 mm
Focal Length: 900 mm
Focal Ratio: f/7.89
Secondary Mirror Obstruction: 25 mm
Secondary Mirror Obstruction by Diameter: 22 percent
Secondary Mirror Obstruction by Area: 4.96 percent
Optical Coatings: Aluminum reflective coating
Performance
Highest Useful Magnification: 269x
Lowest Useful Magnification: 16x
Limiting Stellar Magnitude: 12.8
Rayleigh Resolution: 1.22 arc seconds
Dawes Resolution: 1.02 arc seconds
Light Gathering Power: 265 times that of the human eye
Apparent Field of View: 0.9 degrees
Linear Field of View at 1000 yards: 48 feet
Eyepieces and Accessories
Eyepiece 1: 20 mm with erect image corrector
Magnification: 45x
Eyepiece 2: 4 mm
Magnification: 225x
Barlow Lens: 3x
Finderscope: 5×24 optical finder
Mount and Tripod
Mount Type: German Equatorial Mount
Tripod Material: Aluminum
Accessory Tray: Included
Tracking Mode: Manual slow-motion controls
Dovetail Compatibility: CG-3
Physical Specifications
Optical Tube Length: 900 mm
Optical Tube Weight: 2.9 kg
Total Kit Weight: 5.4 kg
Tripod Height Adjustment Range: 812.8 mm to 1295.4 mm
