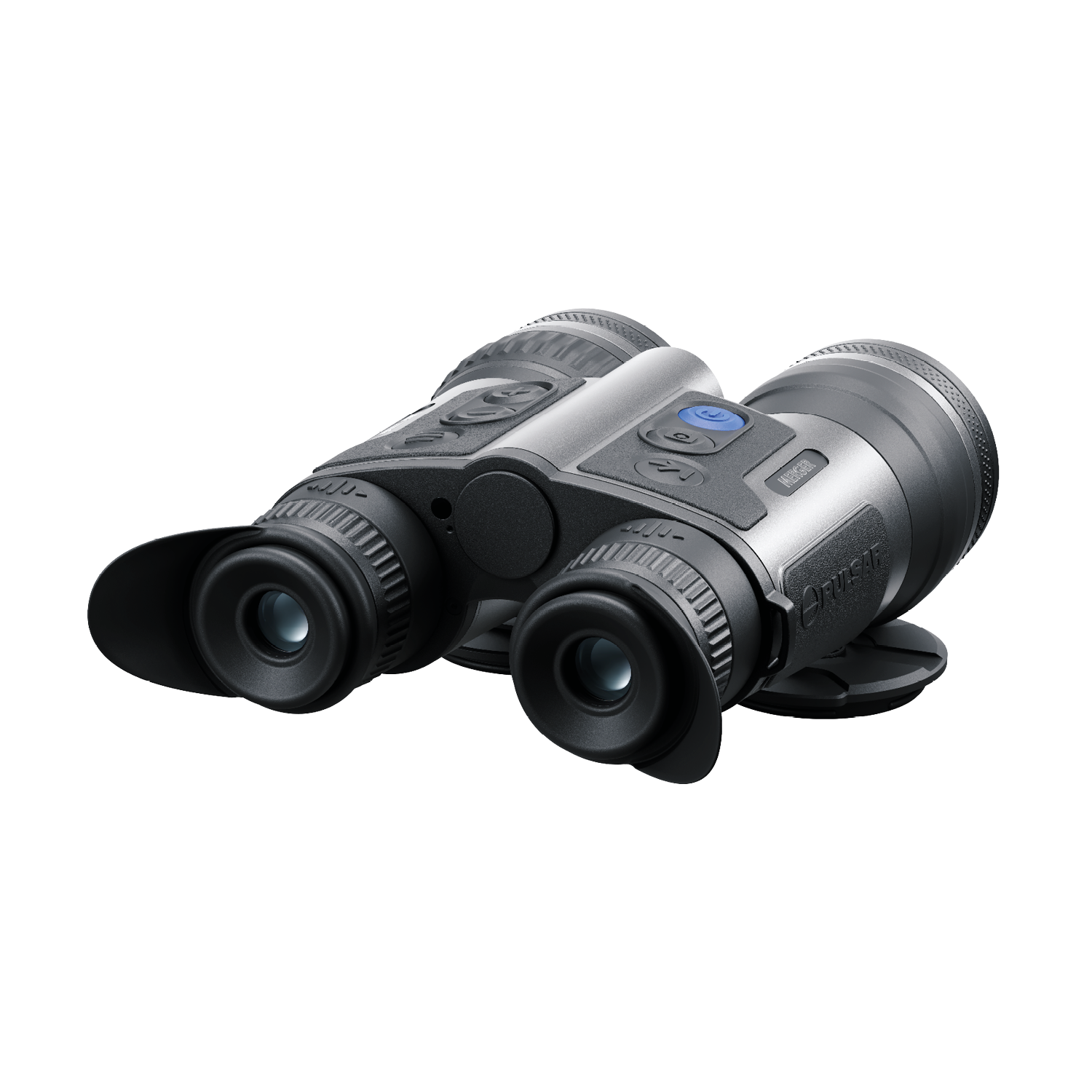

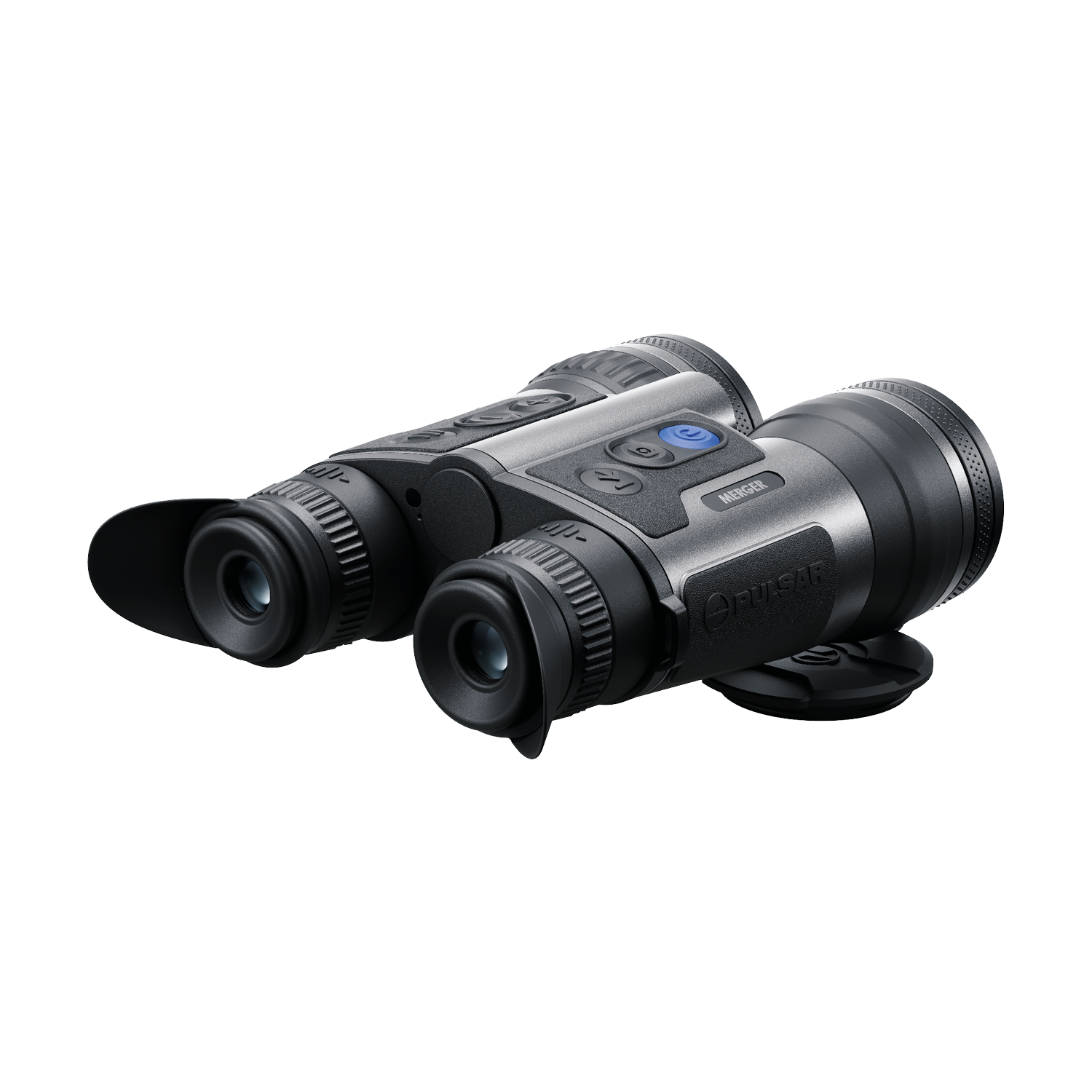

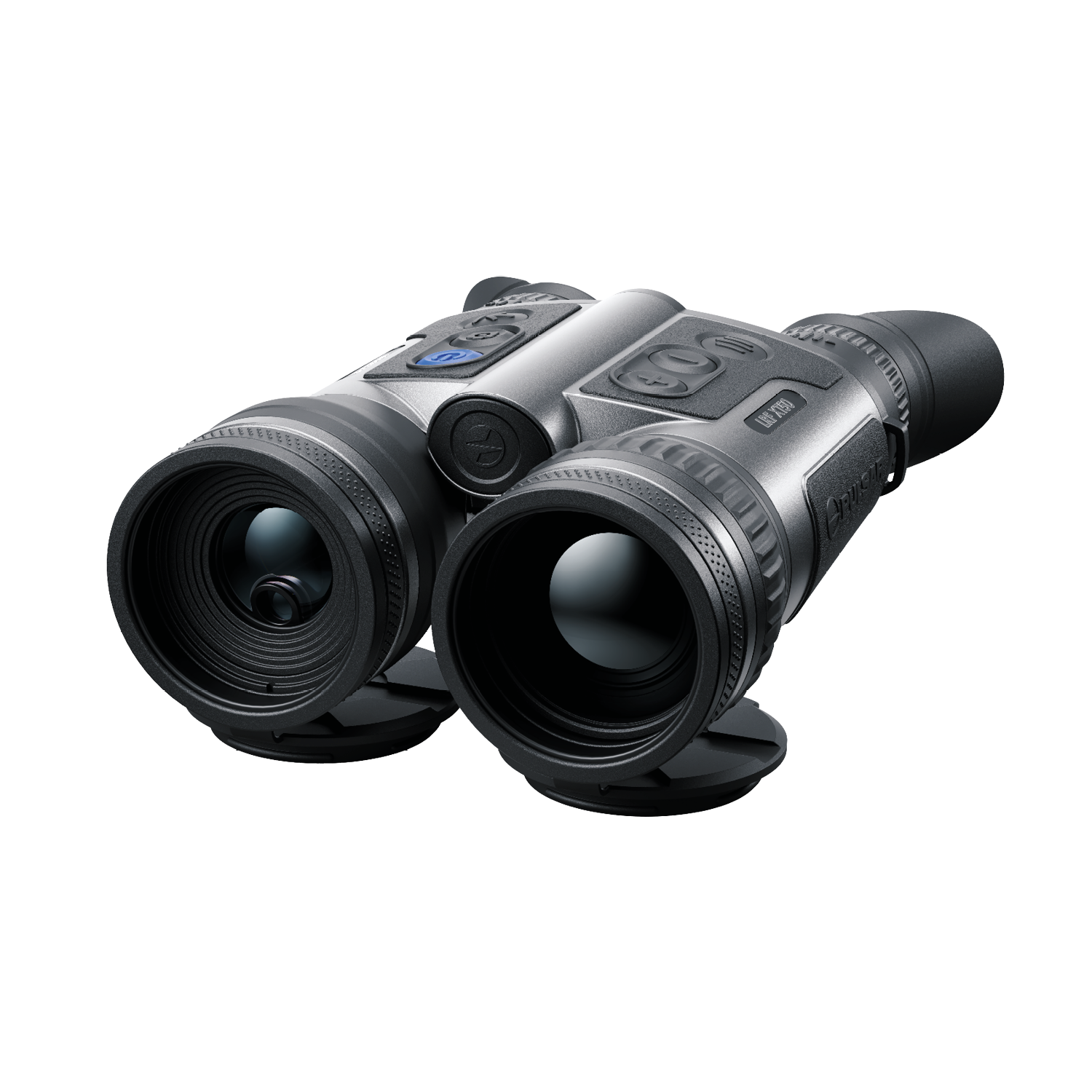

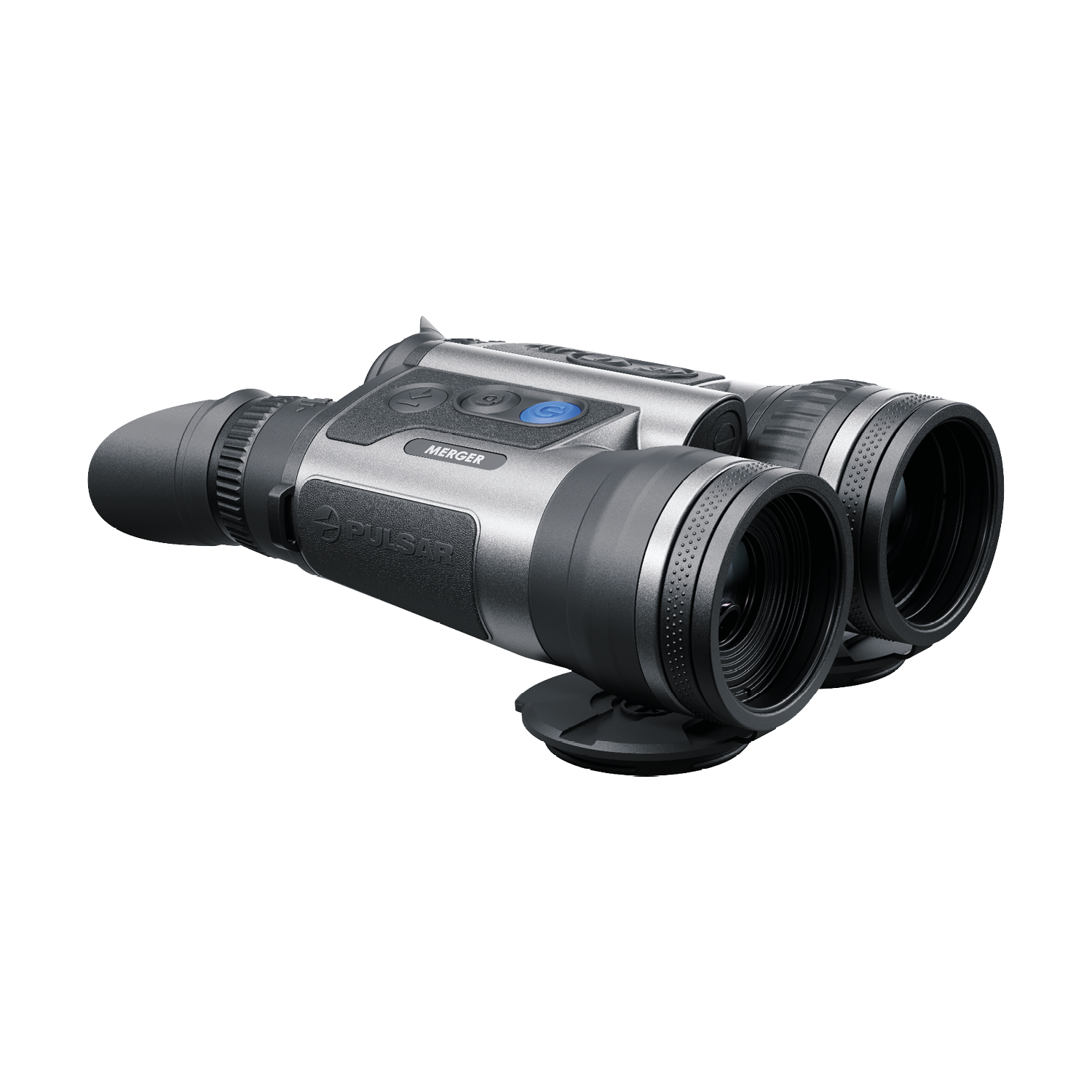

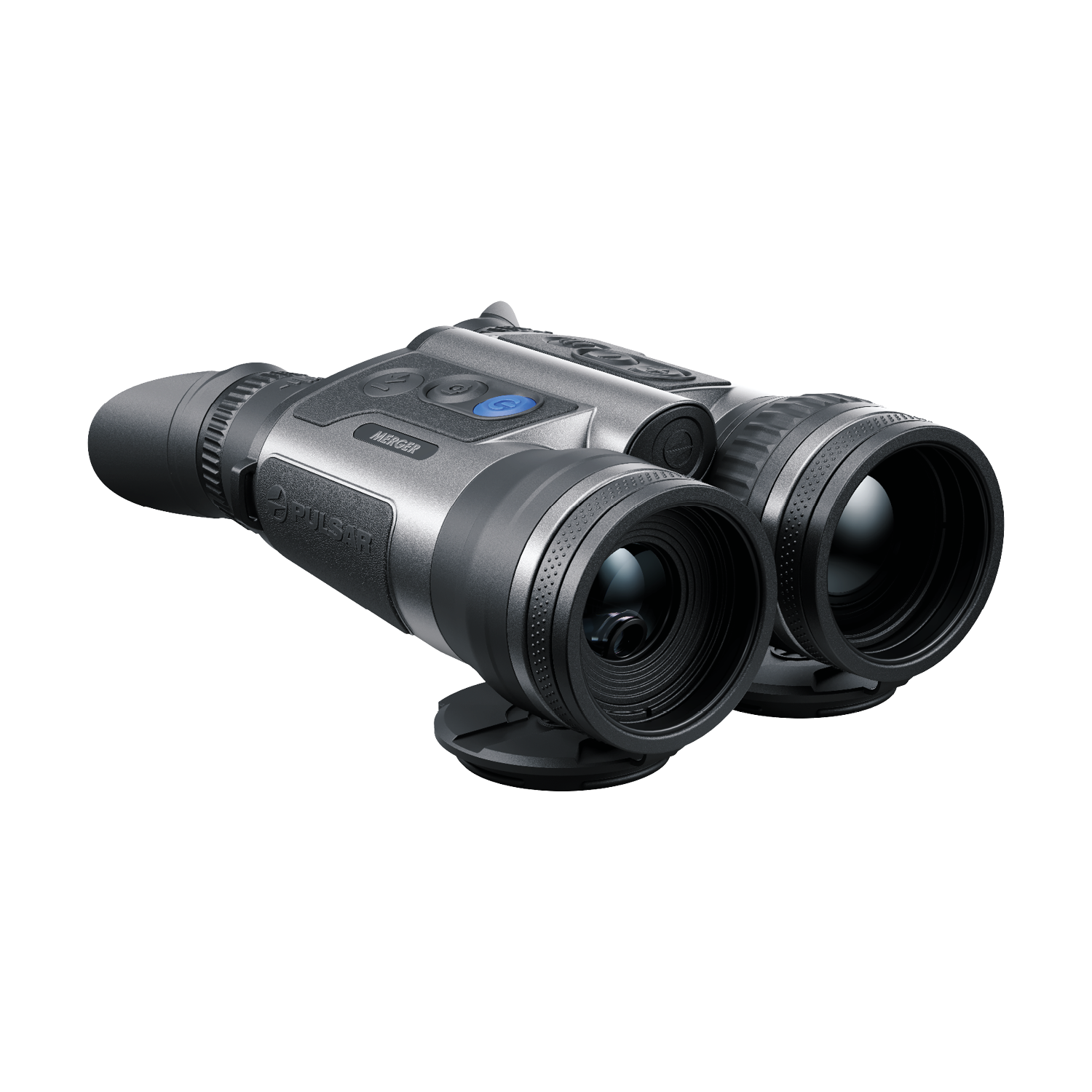

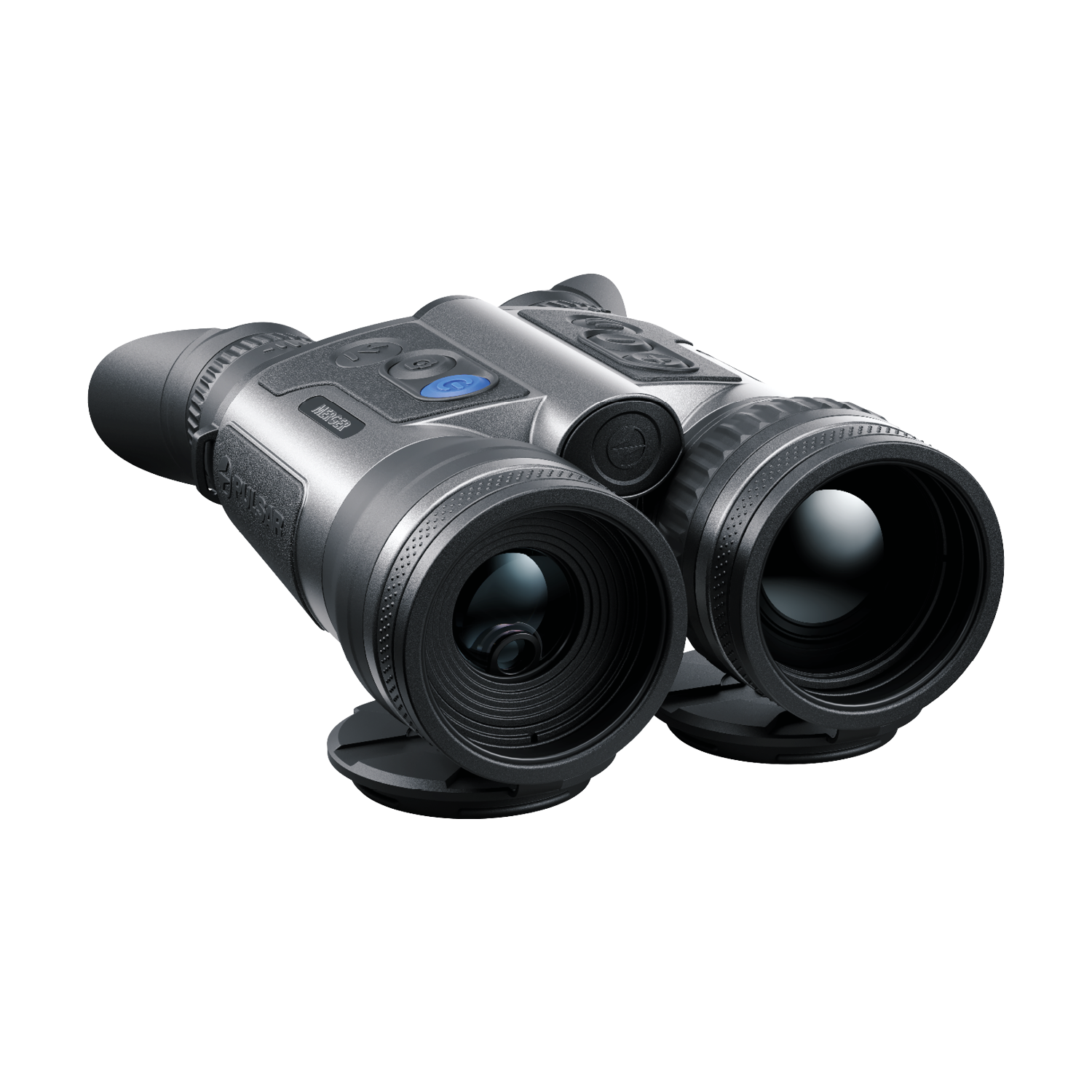

Pulsar Merger LRF XT50 Thermal Binocular
Product Description
Premium HD Thermal Imaging Performance
The Pulsar Merger LRF XT50 Thermal Binocular delivers exceptional thermal imaging performance for professionals and enthusiasts who demand maximum image quality, long-range detection, and comfortable binocular viewing. Featuring a next-generation 1280 × 1024 thermal sensor with a highly sensitive 12 µm pixel pitch, the Merger LRF XT50 produces incredibly detailed thermal images with outstanding clarity across the entire magnification range.
Designed with the familiar ergonomics of traditional daylight binoculars, the Merger LRF XT50 reduces eye fatigue during extended observation sessions while providing precise thermal detection in complete darkness, daylight, fog, smoke, and other challenging environmental conditions.
Outstanding Image Quality
- High-definition 1280 × 1024 thermal sensor provides exceptional image detail.
- Advanced thermal sensitivity reveals subtle temperature differences for improved target recognition.
- High-performance 50 Hz frame rate delivers smooth, fluid image rendering during movement.
- Wide field of view enables efficient scanning of large areas.
- Maintains excellent image sharpness throughout the complete digital zoom range.
- Large AMOLED display delivers vibrant contrast and excellent visibility in all lighting conditions.
- Multiple color palettes allow users to optimize image presentation for different environments.
Comfortable Binocular Viewing Experience
- Traditional binocular design provides natural and comfortable viewing.
- Dual eyepiece system minimizes eye strain during prolonged observation.
- Adjustable interpupillary distance accommodates a wide range of users.
- Diopter adjustment enables precise image focus for individual eyesight.
- Ergonomic housing offers excellent balance for handheld use.
- Optimized control layout allows intuitive operation even while wearing gloves.
Precision Integrated Laser Rangefinder
- Built-in laser rangefinder measures distances with exceptional accuracy.
- Maximum measuring range of 1,500 metres.
- Accurate distance measurements assist with target identification and observation.
- Fast ranging performance enhances situational awareness.
- Integrated design eliminates the need for separate ranging equipment.
Exceptional Long-Range Detection
- Detects heat signatures at extended distances.
- Detection range of up to 2,300 metres for deer-sized objects.
- Large objective lens maximizes thermal energy collection.
- Excellent target recognition in complete darkness and adverse weather conditions.
- Suitable for wide-area surveillance and long-distance observation.
Advanced Digital Features
- Built-in photo and video recording.
- Internal 64 GB memory stores images and recordings without external media.
- Capture important observations directly from the device.
- Save still images in JPG format.
- Record videos in MP4 format.
- Playback recorded content directly from the binocular.
Wireless Connectivity
- Integrated Wi-Fi connectivity.
- Compatible with Stream Vision 2 mobile application.
- Wireless image and video transfer.
- Remote device operation through supported mobile devices.
- Firmware updates through the companion application.
- Supports both 2.4 GHz and 5 GHz Wi-Fi networks.
Rugged Construction
- Durable magnesium alloy housing provides strength while reducing weight.
- Built for demanding outdoor environments.
- Waterproof IPX7 protection safeguards against rain and water exposure.
- Engineered for dependable performance in extreme temperatures.
- Robust construction withstands heavy field use.
Efficient Power System
- Dual battery system combines an internal rechargeable battery with a removable APS3 battery.
- Supports extended observation sessions.
- USB Type-C Power Delivery compatible.
- External power bank compatibility for prolonged operation.
- Convenient battery replacement without interrupting extended use.
Ideal Applications
- Wildlife observation
- Nature research
- Search and rescue operations
- Security surveillance
- Property monitoring
- Outdoor exploration
- Professional thermal observation
- Environmental monitoring
Specifications
| Specification | Details |
|---|---|
| Model | Merger LRF XT50 |
| SKU | PUL-77486 |
| Sensor Type | Uncooled microbolometer |
| Sensor Resolution | 1280 × 1024 pixels |
| Pixel Pitch | 12 µm |
| Sensor NETD | <40 mK |
| System NETD | <20 mK |
| Frame Rate | 50 Hz |
| Objective Lens | F50 / F1.0 |
| Optical Magnification | 2× |
| Maximum Digital Magnification | 16× |
| Digital Zoom Levels | 2×, 4×, 8× |
| Display Type | AMOLED |
| Display Resolution | 1280 × 960 pixels |
| Field of View | 17.5° × 14° |
| Field of View at 100 m | 30.7 m × 24 m |
| Detection Range | 2,300 m |
| Minimum Focus Distance | 5 m |
| Eye Relief | 15 mm |
| Exit Pupil Diameter | 3.5 mm |
| Diopter Adjustment | -5 to +4 D |
| Interpupillary Distance | 63–74 mm |
| Laser Wavelength | 905 nm |
| Laser Rangefinder Maximum Distance | 1,500 m |
| Rangefinder Accuracy | ±1 m |
| Video Resolution | 1280 × 960 pixels |
| Photo Resolution | 1280 × 960 pixels |
| Video Format | MP4 |
| Photo Format | JPG |
| Internal Memory | 64 GB |
| Wireless Standard | IEEE 802.11 b/g/n/ac |
| Wi-Fi Frequencies | 2.4 GHz, 5 GHz |
| Protection Rating | IPX7 |
| Operating Temperature | -25°C to +50°C |
| Mount Thread | 1/4 inch |
| Battery Type | Internal Li-Ion + APS3 removable Li-Ion |
| Internal Battery Capacity | 4000 mAh |
| External Battery Capacity | 3200 mAh |
| External Power | USB Type-C Power Delivery, 5 V / 9 V |
| Body Material | Magnesium alloy |
| Dimensions | 197 × 140 × 72 mm |
| Weight | 0.95 kg (with batteries) |
