Canon EOS R5 Mark II 45 Megapixel Full Frame Mirrorless Camera | 6536C021
Canon EOS R5 Mark II 45 Megapixel Full Frame Mirrorless Camera | 6536C021
- 45 megapixel stacked sensor: Superb resolution and speed
- 30 fps max shooting speed: To capture decisive moments
- Dual Pixel Intelligent AF: Reliable tracking and subject identification
- 8K RAW video up to 60p: For fine detail and flexibility when editing
- DIGIC Accelerator + DIGIC X: For fast data processing and in camera Neural network support
- Action Priority mode: Makes shooting selected sports easy
- In-Camera Upscaling: Create ultra-detailed files for cropping or printing
- Pre-continuous capture: Never miss a moment, capturing moments from before you took the shot
The EOS R5 Mark II boasts a 45-megapixel stacked sensor, providing exceptional resolution and speed. With a maximum shooting speed of 30 fps, this camera is perfect for capturing decisive moments. The Dual Pixel Intelligent AF ensures reliable tracking and subject identification, while the 8K RAW video up to 60p allows for fine detail and flexibility when editing. The DIGIC Accelerator and DIGIC X work together to provide fast data processing and in-camera neural network support.
With features like Action Priority mode, in-camera upscaling, and pre-continuous capture, the EOS R5 Mark II allows photographers and filmmakers to master the moment with incredible speed and performance. This camera is perfect for a variety of genres, from wildlife and portrait photography to filmmaking and documentaries. Its advanced technology, including the revolutionary RF lens mount, makes it an agile and robust tool for unleashing creativity.
Master the moment with incredible speed, resolution and all-round performance
Incredible 45-megapixel resolution meets breath-taking speed up to 30fps and up to 8K 60p RAW video. The result is a camera that excels in every genre of visual story telling. DIGIC Accelerator technology powers Dual Pixel Intelligent AF – now with next-generation Eye Control AF and Action Priority mode. A max ISO 51,200 sensitivity (extendable to ISO 102,400) is supported by in-camera Neural Network noise reduction, for amazing results in low light. And this super-connected camera lets you get content to the client quickly, reliably and easily. The EOS R5 Mark II masters it all and lets you conquer your creative ambitions.
For photographers and filmmakers of all genres from wildlife, reportage and portrait photography to filmmaking, interviewing and documentaries., the EOS R5 Mark II is a camera that empowers you to shoot your most creative work yet.
DIGIC Accelerator meets DIGIC X for exceptional performance
EOS R5 Mark II’s Dual Pixel Intelligent AF and Eye Control AF set new standards. Sharp focus is maintained on moving subjects, even when briefly obscured from view. Action Priority mode detects players in football, basketball and volleyball, moving the active AF area in response to specific actions – such as a shot on goal made from a high-speed pass.
Where speed meets resolution
Whatever the story, the EOS R5 Mark II speaks your language. Shoot incredible 45-megapixel photos at 30fps speed and 15-frame Pre-Capture or capture sumptuous 8K 60p RAW video that truly impresses. Whatever your needs, the EOS R5 Mark II unlocks new ways to be creative.
Switch to hybrid
Use the full width of the EOS R5 Mark II’s sensor to shoot sensational 8K footage – rich in detail and crop-friendly during editing. 8K 60p Light RAW portrays moving subjects with silky smooth motion. 14-bit colour depth offers fine gradation and wide dynamic range. With EOS R5 Mark II’s Dual Shooting function, you can simultaneously capture 33.2-megapixel (16:9) photos at 7.5fps while also shooting Full HD video.
When the pressure is on, get connected fast
Get your photos and video back to your client more quickly and reliably than ever, whether you’re connected wirelessly with Wi-Fi 6E1 or tethered via USB. Choose an optional battery grip to connect via 2.5G BASE-T Ethernet.
Powerful performance built on advanced technology
The EOS R5 Mark II is brimming with advanced technologies, including our revolutionary RF lens mount, that empowers you to be more creative. An up to 8.5-stop Image Stabilizer lets you shoot handheld with slow shutter speeds, while customisable controls let you set up the camera to suit the scene and your shooting style. All this from an agile, robust design that inspires creativity from the moment you hold it.
Advanced 45-megapixel stacked image sensor
A next-generation full-frame back-illuminated stacked CMOS sensor combines stunning resolution and dynamic range with incredible speed and video capabilities. A max ISO 51,200 sensitivity (extendable to ISO 102,400) is supported by in-camera neural network noise reduction, for cleaner, more-detailed jpeg images.
DIGIC Accelerator
The EOS R5 MARK II sees DIGIC Accelerator and DIGIC X image processors working alongside each other for phenomenal performance.
AF tracking of people, animals and objects is improved – even objects that are momentarily obscured from view are tracked continuously and kept in sharp focus
Action priority recognises key events in football, basketball and volleyball and moves the active AF point in anticipation
Stills and video can be captured simultaneously, thanks to the DIGIC Accelerator’s ability to process large volumes of data at speed
Go large, with in-camera upscaling
Deep-learning means that images can be upscaled in-camera by up to four times, generating high-resolution versions for cropping or printing at huge sizes. The same deep-learning capability delivers incredible noise reduction for smooth, detailed images at high ISO sensitivities
Action Priority focus mode
When shooting photos with the EOS R5 Mark II’s advanced electronic shutter, the camera’s DIGIC Accelerator processor lets it identify significant actions in three sports: football, basketball and volleyball. The camera automatically switches the active AF area to a person performing the kind of a critical action that has traditionally been hard to shoot, such as a shot from a high-speed pass.
Next Generation Eye Control AF
Select an AF area, or a subject to track, simply by looking at it. The use of newly developed optics and a revised line-of-sight algorithm enhances the accuracy of the system, compared with the EOS R3, and broadens the angle over which the system is effective, for a more natural experience.
Pre-continuous shooting
15 frames are buffered continuously while the shutter-release is half pressed and written to memory card when you actually take the shot. This lets you capture images from the previous ½ sec, so you nail that decisive moment. At slower shooting speeds, the pre-capture time increases, giving you even more flexibility.
| IMAGE SENSOR | |
| Type | 36 x 24 mm Full Frame back- illuminated stacked CMOS sensor |
| Effective Pixels | Approx. 45 megapixels |
| Total Pixels | Approx. 50.3 megapixels |
| Aspect Ratio | 3:2 |
| Low-Pass Filter | Built-in/Fixed |
| Sensor Cleaning | EOS integrated cleaning system |
| Colour Filter Type | RGB Primary Colour |
| Sensor Shift-IS | Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1 |
| IMAGE PROCESSOR | |
| Type | DIGIC Accelerator and DIGIC X |
| LENS | |
| Lens Mount | RF / RF-S EF and EF-S lenses can be attached using Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R EF-M lenses are not compatible |
| Focal Length | Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses. |
| Image Stabilisation | |
| FOCUSING | |
| Type | Dual Pixel Intelligent AF |
| AF System/Points | 100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes2 100% horizontal and 90% vertical with manual selection and large zone modes |
| AF Working Range | EV -6.5 – 21 (at 23°C & ISO100)3 |
| AF Modes | One Shot, Servo AF, AI Focus AF (in A+ Scene Intelligent Auto mode) |
| AF Methods | |
| AF Point Selection | Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected Manual selection: Spot AF Manual selection: 1-point AF (AF frame size can be changed) 5850 (stills)/ (4500) movie AF positions available Manual selection: AF point Expansion 4 points (up, down, left, right) Manual selection: AF point Expansion surrounding Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones, where the width and hight is also adjustable) Manual selection: Whole area AF Manual selection: Spot AF (Whole area tracking servo AF OFF) Manual selection: 1-point AF (Whole area tracking servo AF OFF) Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF) Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF) |
| AF Tracking | Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Airplanes and Trains), Register People Priority (up to 10 x 10 registered people), Action Priority4 (Football, Basketball, Volleyball) |
| Supported actions |
Soccer: Shoot, header, short pass, long pass, dribble, clear, place kick, save by keeper, throw in, sliding tackle Basketball: Shoot, rebound, pass, dribble, free throw, jump ball Volleyball: Spike, toss, receive, serve |
| AF Lock | Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo |
| AF Assist Beam | Emitted by built in LED or optional dedicated Speed lite (flash) |
| Manual Focus | Selected on lens |
| EXPOSURE CONTROL | |
| Metering Modes | Real-time with image sensor, 6144-zone metering. (1) Evaluative metering (linked to All AF points) (2) Partial metering (Approx. 9.5% of screen at centre) (3) Spot metering: Centre spot metering (Approx. 5.3% screen at centre) AF point-linked spot metering not provided (4) Centre weighted average metering |
| Metering Brightness Range | EV -3 – 20 (at 23°C, ISO100, with evaluative metering) |
| AE Lock | |
| Auto | AE lock takes effect when focus is achieved |
| Manual | By AE lock button in P, Av, Fv, Tv and M modes |
| Exposure Compensation | +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB) |
| AEB | +/-3 EV in 1/3 or 1/2 stop increments |
| Anti-Flicker Shooting | Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter High Frequency anti flicker shooting for M and TV modes Electronic 1st-curtain: 1/50.0 to 1/2048.0 sec. Electronic shutter: 1/50.0 to 1/8192.0 sec. Movie recording: 1/50.0 to 1/8192.0 sec. (NTSC/PAL) Maximum continuous shooting speed may decrease. |
| ISO Sensitivity | Auto 100-51200 (in 1/3- stop or 1 stop increments) ISO can be expanded to L:50, H1:1024005 |
| SHUTTER | |
| Type | Electronically controlled focal-plane shutter and electronic shutter function on sensor |
| Speed | 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
| Shutter Release | Soft touch electromagnetic release |
| WHITE BALANCE | |
| Type | Auto white balance with the imaging sensor supported by deep learning technology AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting |
| Settings | White balance compensation: |
| 1 | Blue/Amber +/-9 |
| 2 | Magenta/Green +/-9 |
| Shift | |
| Custom White Balance | Yes, 5 setting can be registered |
| WB Bracketing | +/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release Selectable Blue/Amber bias or Magenta/Green bias |
| VIEWFINDER | |
| Type | 0.5-inch OLED colour EVF |
| Dot Count | 5.76 million dots (1600x1200) |
| Coverage (Vertical/Horizontal) | Approx. 100% |
| Magnification | Approx. 0.76x6 |
| Eyepoint | Approx. 24mm (from eyepiece lens centre) |
| Dioptre Correction | -4 to +2 m-1 (dioptre) |
| Display performance | Power saving: 59.94 fps Smooth 119.98 fps, supress low frame rate 60 -119.8fps7 (7 level of brightness) |
| LCD MONITOR | |
| Type | 8.0 cm (3.2") TFT colour LCD, approx. 2.1 million dots |
| Coverage | Approx. 100% |
| Viewing Angle Horizontally/Vertically | Approx. 170° vertically and horizontally |
| Coating | Anti-smudge. |
| Brightness Adjustment | Manual: Adjustable to one of seven levels Colour Tone Adjustment: 4 settings |
| Touch-Screen Operations | Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting. |
| Display Options | (1) Basic Camera settings (2) Advance Camera settings (3) Camera settings plus histogram and dual level display (4) No info (5) Quick Control Screen (6) Off |
| FLASH |
Built-in Flash GN (ISO 100, meters) Built-in Flash Coverage Built-in Flash Recycle Time |
| Modes | E-TTL II flash metering, Manual flash, MULTI flash (stroboscopic), Auto external flash metering, Manual external flash metering |
| X-Sync | When [Cropping/aspect ratio: Full- frame/1:1/4:3/16:9] is set: 1/200 sec mechanical shutter / 1/250 electronic 1st curtain, 1/160 sec |
| Electronic shutter |
When [Cropping/aspect ratio: 1.6x (crop)] is set: 1/250 sec mechanical shutter / 1/320 electronic 1st curtain, 1/250 sec Electronic shutter8 |
| Flash Exposure Compensation | +/- 3EV in 1/3 increments with EX and EL series Speedlite flashes |
| Flash Exposure Bracketing | +/- 3EV in 1/3 increments with EX and EL series Speedlite flashes |
| Flash Exposure Lock | Yes |
| Second Curtain Synchronisation | Yes, via Speedlite |
| Hot Shoe/PC Terminal | Yes/Yes and Multi- function shoe |
| External Flash Compatibility | EL series Speedlites, EX series Speedlites, Macrolites, Wireless multi-flash support |
| External Flash Control | via camera menu screen |
| SHOOTING | |
| Modes | Stills; Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3) Movie: Program AE, Shutter priority AE, Aperture priority AE, Manual, and Custom (x3) |
| Picture Styles | Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) |
| Colour Space | SDR: sRGB and Adobe RGB HDR PQ: BT.2020 Highlight Tone Priority (3 settings) Auto Lighting Optimizer (4 settings) Long exposure noise reduction (3 settings) (still only) Clarity High ISO speed noise reduction (4 settings) (still and video) |
| Lens optical correction | Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only) Focus breathing correction(during video only) Diffraction correction, Digital Lens Optimizer (during/after still photo shooting) |
| Image Processing | Resize to M, S1, S2 Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1) |
| Cropping of images | Switch between vertical and horizontal cropping orientation Image straightening Cropping frame can be moved using touch screen operation Neural Network Upscaling RAW image processing Neural Network Noise Reduction Multiple exposure HDR HEIF to Jpeg conversion (inc Batch conversion) Focus Bracketing and in camera composition |
| Drive Modes | Single, Continuous High+, Continuous High, Continuous Low, Customisable Continuous shooting speeds, Self-timer (2s+remote, |
| 10s+remote, continuous) | |
| Continuous Shooting | Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained for 760 JPEG or 230/95(CFexpress/SD card) RAW images or 30 FPS with electronic shutter speed maintained for 200 JPEG or 93/86(CFexpress/SD card) RAW images9. Custom Continuous shooting speed with Electronic shutter selectable options 30 / 20 / 15 / 12 / 10 / 7.5 / 5 / 3 / 2 / 1 FPS depending on the drive mode. Pre-Continuous shooting is possible from 15 shots before the shutter button is fully pressed when the AF is on for 15 shots or more. |
| Interval Timer | Built in |
| FILE TYPE – STILLS | |
| Still Image Type | RAW 14 bit: RAW and C- RAW (Canon original RAW 3rd edition) JPEG 8 bit: 10 compression options HEIF 10 bit: 10 compression options Complies with Exif 2.31 and Design rule for Camera File system 2.0 Complies with Digital Print Order Format [DPOF] Version 1.1 |
| RAW+JPEG/HEIF Simultaneous Recording | Yes, any combination of RAW + JPEG or RAW + HEIF possible |
| Image Size | RAW/ C-RAW: 3:2 ratio 8192x5464, 1.6x (crop) 5088x3392 |
| JPEG/ HEIF |
3:2 ratio (L, RAW, C-RAW) 8192x5464, (M) 6000x4000, (S1) 4176x2784, (S2) 2400x1600 1.6x (crop) (L) 5088x3392, (S2) 2400x1600 4:3 ratio (L) 7280x5464, (M) 5328x4000, (S1) 3712x2784, (S2) 2112x1600 16:9 ratio (L) 8192x4608, (M) 6000x3368, (S1) 4176x2344, (S2) 2400x1344 1:1 ratio (L) 5456x5456, (M) 4000x4000, (S1) 2784x2784, (S2) 1600x1600 In-camera Neural Network Upscaling up to 16384x10928 (179MP)10 |
| Folders | New folders can be manually created, named and selected Movie folder structure is adopting the XF- HEVC S / XF-AVC S format |
| File Numbering | (1) Consecutive numbering (2) Auto-reset (3) Manual reset |
| File Naming | Still Preset code Unique 4-digit character string + 4-digit file number 2 User Presets |
| Movie | Adopting the XF-HEVC S / XF-AVC S format Camera index, Reel number, Clip number, Codec type, Shooting start date, Shooting start time, Random ID, User defined 5 characters, Stream number, (Proxy) |
| EOS MOVIE | |
| Movie Type | RAW/SRAW Video: 8K DCI(17:9) / 4K DCI(17:9)11 MP4 Video: 8K DCI/UHD (17:9/16:9) 4K DCI/UHD (17:9/16:9), 2K/Full HD (17:9/16:9) 8K/4K/2K/Full HD: XF-HEVC S/H.265, Audio: Linear PCM / AAC 4K/2K/Full HD: MPEG-4 AVC S/H.264, Audio: Linear PCM / AAC 8K RAW 4K RAW: 12bit CRM Audio: Linear PCM / AAC 8K/4K/FullHD Time-lapse movie mode |
| Movie Size | RAW (Light) (17:9) 8192 x 4320 (59.94, 50, 29.97, 25, 24, 23.98 fps) RAW (Standard) (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) SRAW (Standard, Light) (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps) 8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) 2-3 type of intra or Long GOP 8K UHD (16:9) 7680 x 4320 (29.97, 25, 23.98 fps) 2-3 type of intra or Long GOP 4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) 3 type of intra or Long GOP 4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) 3 type of intra or Long GOP 2K DCI (17:9) 2048 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) Intra frame or Long GOP Full HD (16:9) 1920 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) Intra frame or Long GOP HDR movie recording at up to 59.94p in Normal modes of 4K DCI/UHD, 2K DCI/UHD, Full HD HDR movie recording at up to 29.97p in Fine modes of 4K DCI/UHD, 2K DCI/UHD, Full HD12 |
| Colour Sampling (Internal recording) | 8K/ 4K/ 2K/ Full HD - YCbCr4:2:0 or YCbCr4:2:2 8-bit or 10bit |
| Canon Log | Custom Picture: C1: Canon 709 C2: Canon Log 2 C3: Canon Log 3 C4: PQ C5: HLG C6: BT.709 Standard C7 - C20: User Defined Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) |
| Movie Length | Max duration 6 hours. (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card13. |
| High Frame Rate Movie | MP4 Video: 4K – DCI 4096x2160 / UHD 3840x2160 at 119.9 / 100 fps 2K – DCI 4096x2160 / UHD 3840x2160 at 239.76 / 200 / 119.9 / 100 fps Full HD 1920 x1080 at 239.76 / 200 / 119.9 / 100 fps14 |
| Frame Grab | 35.4-megapixel JPEG still image frame grab from 8K DCI movie possible 33.2-megapixel JPEG still image frame grab from 8K UHD movie possible 8.8-megapixel JPEG still image frame grab from 4K DCI movie possible 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)15 Dual Shooting (Still & Movie): |
| Movie Output | Main recording format: XF- AVC S YCC420 8bit Movie recording size: Full HD (Normal) at 29.97p / 25p (LGOP) Drive mode (JPEG only at the resolution of 8K(7680×4320) and Aspect ratio: Approx. 16:9): High speed (Max. approx. 7.5 shots/sec. (NTSC), Max. approx. 6.2 shots/sec. (PAL)) Low speed (Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL)) Single shooting 16 |
| Bitrate/Mbps | CRM: 8K RAW Standard (29.97p/25.00p/24.00p/23.98p): Approx. 2600 Mbps 8K RAW Light (59.94p/50.00p): Approx. 2600 Mbps 8K RAW Light (29.97p): Approx. 1670 Mbps 8K RAW Light (25p): Approx. 1400 Mbps 8K RAW Light (24.00p/23.98p): Approx. 1340 Mbps 4K SRAW Standard (59.94p): Approx. 1860 Mbps 4K SRAW Standard (50p): Approx. 1550 Mbps 4K SRAW Standard (29.97p): Approx. 930 Mbps 4K SRAW Standard (25.00p/24.00p/23.98p): Approx. 780 Mbps 4K SRAW Light (59.94p): Approx. 840 Mbps 4K SRAW Light (50p): Approx. 700 Mbps 4K SRAW Light (29.97p): Approx. 420 Mbps 4K SRAW Light (25.00p/24.00p/23.98p): Approx. 350 Mbps MP4 8K DCI/UHD Normal: XF-HEVC S YCC422 10bit High Quality Intra 24p / 23.98p: Approx. 1920 Mbps Standard Intra 25p: Approx. 1500 Mbps Light Intra 25p: Approx. 1000 Mbps Standard LGOP 25p: Approx. 540 Mbps XF-HEVC S YCC420 10bit Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 400 Mbps MP4 4K DCI/UHD Fine / Normal (Oversampled from 8K / Not oversampled): XF-HEVC S YCC422 10bit Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 135 Mbps XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 100 Mbps XF-AVC S YCC422 10bit High Quality Intra 25p: Approx. 500 Mbps Standard Intra 25p: Approx. 375 Mbps Light Intra 25p: Approx. 250 Mbps Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 150 Mbps MP4 4K DCI/UHD Normal (Not oversampled): XF-HEVC S YCC422 10bit Standard LGOP 119.9p / 100p: Approx. 450 Mbps 59.94p/50.00p: Approx. 225 Mbps XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP 119.9p / 100p: Approx. 300 Mbps 59.94p/50.00p: Approx. 150 Mbps XF-AVC S YCC422 10bit High Quality Intra 50p: Approx. 1000 Mbps Standard Intra 100p: Approx. 1500 Mbps Standard Intra 50p: Approx. 750 Mbps Light Intra 100p: Approx. 1000 Mbps Light Intra 50p: Approx. 500 Mbps Standard LGOP 100p: Approx. 500 Mbps Standard LGOP 50p: Approx. 250 Mbps MP4 2K DCI / FullHD Fine / Normal (Oversampled from 4K / Not oversampled): XF-HEVC S YCC422 10bit Standard LGOP 59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP 59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 35 Mbps XF-AVC S YCC422 10bit Standard Intra 25p/50p: Approx. 125/250 Mbps Standard LGOP 59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps MP4 2K DCI/UHD Normal (Not oversampled): XF-HEVC S YCC422 10bit Standard LGOP 239.76p / 200p: Approx. 200 Mbps 119.88p / 100p: Approx. 100 Mbps XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP 239.76p / 200p: Approx. 140 Mbps 119.88p / 100p: Approx. 70 Mbps XF-AVC S YCC422 10bit Standard Intra 200p: Approx. 1000 Mbps Standard Intra 100p: Approx. 500 Mbps Standard LGOP 200p: Approx. 200 Mbps Standard LGOP 100p: Approx. 100 Mbps Proxy movie (2K-DCI Normal / Full HD Normal) XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP 59.94p/50p/29.97p/25p/24p/23.98p: Approx. 16 Mbps XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Light LGOP 59.94p/50p/29.97p/25p/24p/23.98p: Approx. 9 Mbps |
| Dual Card recording | Yes (including Proxy recording) |
| Microphone | Built-in mono microphone (48 Khz, 24/16-bit x 2 channels) |
| Audio format | LPCM / 24 bit / 4CH AAC / 16 bit / 2CH |
| HDMI Display | Output to external monitor only (output of images and shooting information, images are recorded to the card) Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)17 |
| HDMI Output | 8K RAW or 4K SRAW ProRes recording via HDMI18 4K (DCI) 59.94p / 50p/29.97p /25p/24p/ 23.98p, 4K (UHD) 59.94p / 50p/ 29.97p / 25p / 23.98p, Full HD 59.94p / 60i / 59.94i / 50p / 50i 480p 59.94p 576p 50p Uncompressed YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible“ |
| Focusing | Dual Pixel Intelligent AF with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF, Manual Focus |
| ISO | Auto: 100-25600, H: up to 51200 (when custom picture is off) Manual: 100-25600, H: up to 51200 (when custom picture is off) |
| OTHER FEATURES | |
| NETWORK OPTIONS | Communication functions Via Wi-Fi: FTP, FTPS, SFTP, EOS Utility, image.canon, Sync time between cameras, Camera Connect, Streaming services, Content Transfer |
| Professional, Linked shooting, Camera Control API |
Via Bluetooth: Camera Connect, BR-E1 Via USB: EOS Utility, Camera Connect, Content Transfer Professional, Video calls/streaming (UVC/UAC) Via Ethernet: FTP, FTPS, SFTP, EOS Utility, Sync time between cameras, Camera Control API |
| Simultaneous use of communication functions | FTP (wireless LAN) + EOS Utility (wireless LAN) FTP (wired LAN) + EOS Utility (wired LAN) FTP (wireless LAN) + EOS Utility (USB) FTP (wired LAN) + EOS Utility (USB) |
| Metadata Tag | User copyright information (can be set in camera) Image rating (0-5 stars) IPTC data (registered with EOS Utility) IPTC data (via CTP app) IPTC IIM (via CTP app) NewsML-G2 (News Metadata) (via CTP app) Image transfer with caption (Caption registered with EOS Utility) Blur/Out-of-Focus image detection data19 |
| LCD Panel/Illumination | Yes/Yes |
| Water/Dust Resistance | Yes 20 |
| Voice Memo | Yes |
| Intelligent Orientation Sensor | Yes |
| Playback Zoom | 1.5x - 10x in 15 steps / on high resolution image (Upscaled image): 1.5x to 35x (22 levels) |
| Display Formats | (1) Single image 2) Single image with information (2 levels) Basic - Shooting information (shutter speed, aperture, ISO and Image quality) Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, Waveform monitor(movie mode only), White balance, Picture Style, Colour space and noise reduction, Lens optical correction, GPS information, IPTC information (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating) (8) Movie edit (9) RAW processing (10) Rating |
| Slide Show | Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating Playback time: 1/2/3/5/10 or 20 seconds Repeat: On/Off |
| Histogram | Brightness: Yes RGB: Yes |
| Highlight Alert | Yes |
| Image Erase | Select and erase images / Select range / All images in folder / All images on card / All found images (only during image search), |
| Images transmitted via FTP | |
| Image Erase Protection | Erase protection of Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images (only during image search) |
| Self Timer | 2 or 10 sec. |
| Firmware Update | Update possible by the user using Camera Connect app or EOS Utility (Camera, Lens, External Speedlite, BLE remote control, Lens adapter, Power zoom adapter, multi- function shoe compatible accessories) |
| INTERFACE | |
| Computer | SuperSpeed Plus USB 3.2 Gen 2 USB Type-C® connector |
| Wi-Fi | Wireless LAN (IEEE 802.11ax 2×2 MIMO) (6 GHz / 5 GHz / 2.4 GHz)21, with Bluetooth 5.3 support |

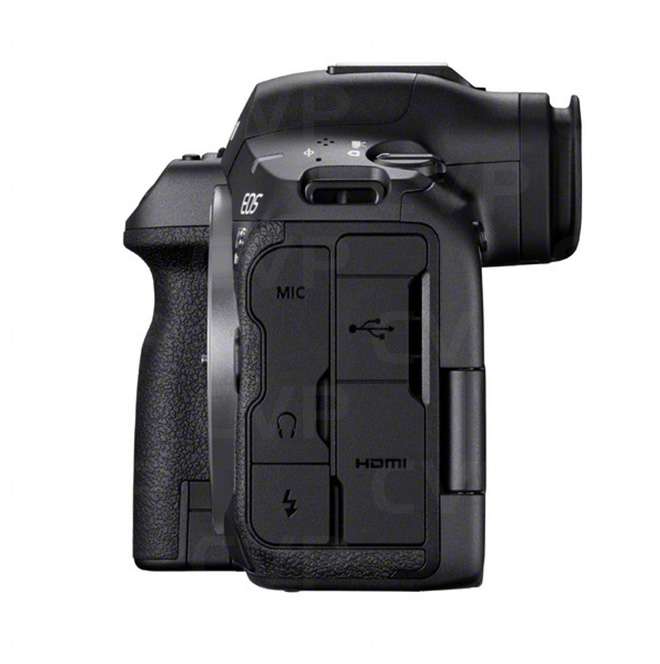

| Other | HDMI out (Type A, HDMI-CEC not supported), RJ-45 Ethernet terminal for 2.5 GBASE-T wired LAN, External Microphone In (Stereo mini ), Headphone socket (Stereo mini jack), N3- type terminal (remote control terminal), PC Sync terminal. |
| GPS | GPS satellites (American) GLONASS satellites (Russian) MICHIBIKI Quasi-Zenith Satellites (Japanese) |
| STORAGE | |

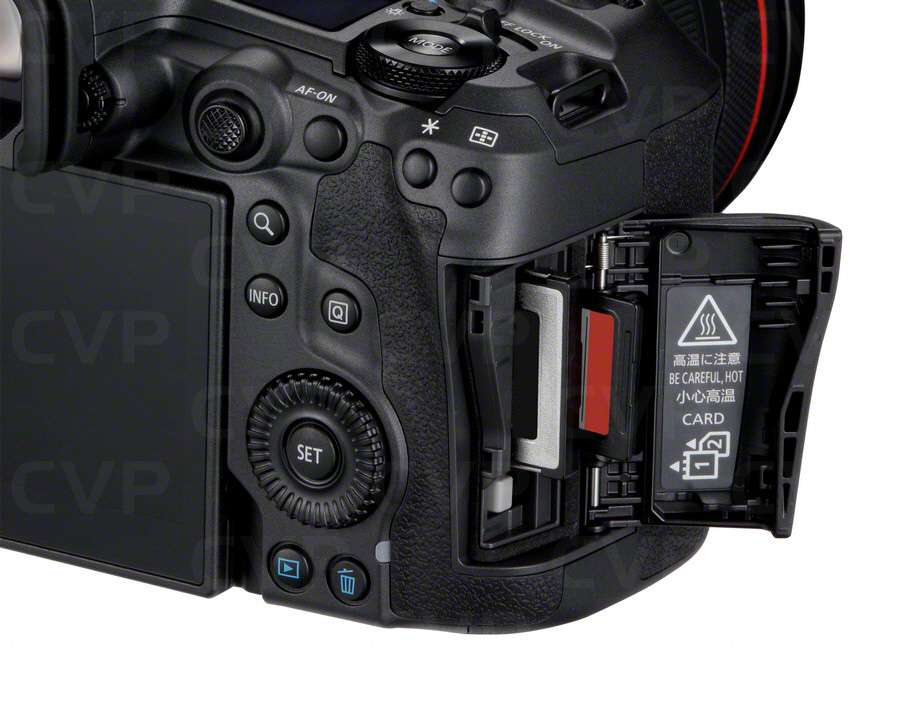

| Type | 1x CFexpress type B maximum capacity 2TB (compatible with CFexpress 2.0 and VPG400) 1x SD/SDHC/SDXC and UHS-II |
| SUPPORTED OPERATING SYSTEM | |
| PC | Windows 10 and Windows 11 (tablet mode not supported) |
| Macintosh | macOS 12 / 13 /14 |
| SOFTWARE | |
| Image Processing | Digital Photo Professional 4.19.10 or later Digital Photo Professional Express mobile app 1.10.10 or later (iOS only) |
| Other | EOS Utility 3.18.10 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app 3.2.10 or later (iOS/Android), Content Transfer Professional app (iOS/Android). |
| POWER SOURCE | |
| Batteries | Rechargeable Li-ion Battery LP-E6P (supplied)22 |
| Battery Life | With LCD Approx. 630 shots (at 23°C)23 With Viewfinder Approx. 340 shots (at 23°C)23 |
| Battery Indicator | 6 levels + percentage |
| Power Saving | Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins |
| Power Supply & Battery Chargers | Battery charger LC-E6E (supplied), Car Battery Charger CBC-E6, CD Coupler DR-E6P24, PD-E2 USB power adapter, PD-E1 USB power adapter25 |
| PHYSICAL SPECIFICATIONS | |
| Body Materials | Magnesium Alloy body and Chassis with some components consisting of polycarbonate with glass fibre |
| Operating Environment | 1 – 40 °C, 85% or less humidity |
| Dimensions (WxHxD) | Approx. 138.5×101.2×93.5 mm |
| Weight (body only) | Approx. 656 g (746 g with card and battery) |
| FOOTNOTES | |
| 1 | Yaw, pitch, and roll image stabilization performance, based on the CIPA 2024 standard with RF 24-105mm F2.8 L IS USM Z at a focal length of 105mm |
| 2 | The AF area available vary depending on the lens used. For lens related details, please refer to [Supplemental Information] for [EOS R5 Mark II] in “https://cam.start.canon”. |
| 3 | The lowest light AF is available with an f/1.2 lens, center AF point, One-Shot AF, at 23°C / 73°F, ISO 100) Except RF lenses with a Defocus Smoothing (DS) coating |
| 4 | Only available for still photos and electronic shutter. If the person's size on the screen is small, or if part of the subject is hidden or multiple subjects are crowded together, identification accuracy may decrease. |
| 5 | Recommended Exposure Index. Expanded ISO speeds are not available when [HDR shooting (PQ): HDR PQ] is set. |
| 6 | with 50mm lens at infinity, -1m-1 dpt |
| 7 | Low light AF performance will be reduced when supress low frames is used |
| 8 | When using EL/EX Speedlite and [Sync speed priority: Enable] is set |
| 9 | Under Canon testing standards with CFexpress/SD card and during servo AF, only RF lenses and some EF lenses can be used for continuous shooting at the maximum speed. The continuous shooting speed may be reduced by the lens, shutter speed, aperture, flash, subject conditions, and brightness (for example, when shooting in a dark place). Continuous shooting speed is slower when flicker is detected, even if anti-flicker shooting is off. For more details please see the User's Guide at “https://cam.start.canon” |
| 10 | Supported images: JPEG / HEIF images, Upscaled images can be cropped. The following images cannot be in-camera upscaled: RAW/C-RAW images, Images shot with a camera that is not the same model, Images resized or cropped by a camera, computer, or other device, In-camera upscaled images, Image size: Other than L, [Cropping/aspect ratio]: Other than Full-frame, Images shot with cropped shooting using an RF-S or EF-S lens, Images frame grabbed from movies, Images shot with the [Dual shooting (still&movie): On] setting. It may take some time for processing images. Shooting is not possible until the image processing finishes. |
| 11 | Recording is possible only when using an CFexpress card. * When using the power source other than LP-E6P/DR-E6P, some restrictions will apply. For more details please see the User's Guide at “https://cam.start.canon” |
| 12 | HDR movie mode is not available when recording RAW movies. If the cameras internal temperature becomes too high the maximum recording time will be reduced 8K UHD 4K UHD and Full HD are 94% horizontal coverage of the image area, RAW, SRAW, 8K DCI, 4K DCI and 2K DCI are 100%, DCI movie cropping mode is 62.1% and UHD/HD movie cropping mode is 58.1% of the horizonal area. |
| 13 | If the cameras internal temperature becomes too high the maximum recording time will be reduced |
| 14 | With [High Frame Rate: Disable] setting, movie is recorded with audio and the movie is played back at actual speed. With [High Frame Rate: Enable] setting, no audio is recorded and the movie is played in slow motion at 29.97 fps (NTSC) /25.00 fps (PAL) when played back. Only exFAT-formatted cards can be used for recording (recording to FAT32-formatted cards is not possible). |
| 15 | The camera cannot frame grab still photos from RAW movies and movies recorded when [Custom Picture: On] is set. In-camera resizing or cropping and in- camera upscaling are not available for frame-grabbed still photos. |
| 16 | Movie recording does not stop during still photo shooting. Movies are recorded to card 1, and still photos are recorded to card 2 (a card needs to be inserted in each slot). The settings during movie recording are applied to still photos. AF/AE operates with the settings suitable for movie recording. The colour tone may differ from that of normal still photos depending on the timing of still photo shooting. Additional restrictions may apply for more details please see the User's Guide. (https://cam.start.canon) |
| 17 | HDMI CEC not supported |
| 18 | 8K and 4K ProRes RAW: For compatibility with external recorders please check the external recorder manufacturer sites. |
| 19 | Blur/out-of-focus detection may not be performed for some scenes or subjects, or results may be inaccurate. Only JPEG or HEIF images are evaluated, and only when the camera is set to use the electronic shutter and detect people or eyes. |

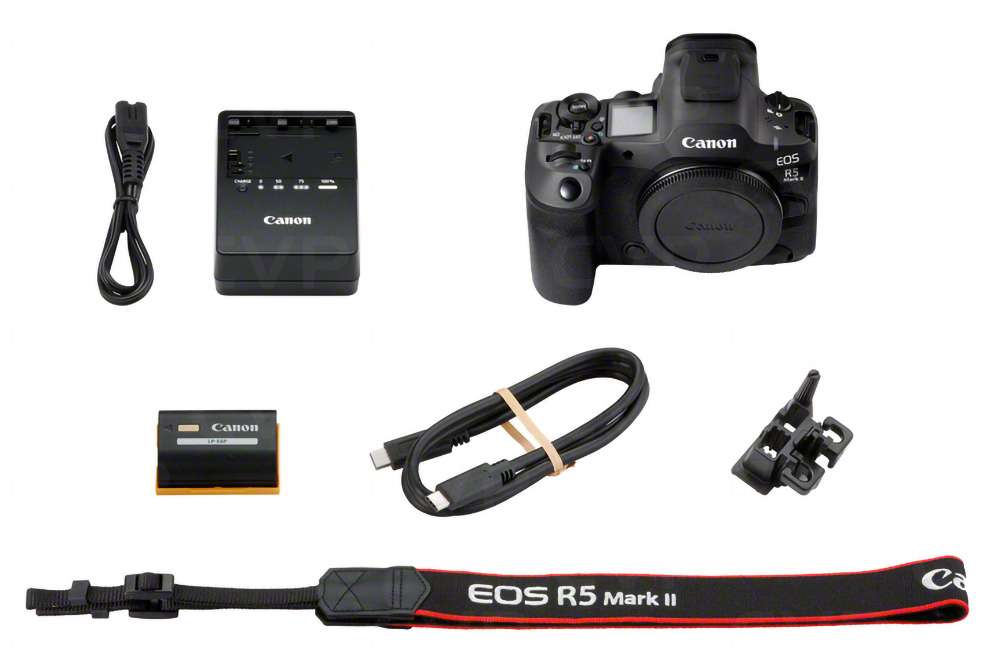

- 1x EOS R5 Mark II
- 1x Shoe Cover ER-SC3 with lock mechanism
- 1x Camera Cover R-F-5
- 1x Strap ER-EOS R5 Mark II
- 1x Battery Charger LC-E6E
- 1x Battery Pack LP-E6P
- 1x Battery Pack Cover
- 1x Interface Cable IFC-100U
- 1x EOS R5 Mark II Cable Protector
- 1x Power Cable
- 1x User Manual
- 1x Reduced Plastic Packaging
Carlos Delivery
We Offer Free Same-Day Delivery to All Our Local Gibraltar Customers…
Same-Day Delivery is Available on All Orders Placed Before 14:30 (Monday-Friday).
We Also Aim to Deliver on Saturday’s & Bank Holidays!
At Carlos, we endeavour to provide a seamless delivery service that allows you to continue shopping from the comfort of your home.
Getting you your order as soon as possible is a priority, however, same-day delivery is subject to the availability of our delivery team.
Our Delivery Team is Active During the Following Hours:
15:30 – 18:30 (Monday – Friday)
15:00 – 16:00 (Saturday’s & Bank Holidays)
If you experience any issues or have a query regarding our delivery service, please reach out to our customer service team: support@carlos.gi
Shipping Abroad
For Any Orders Outside of Gibraltar Please Contact Us Via One of the Following Methods:
Email: support@carlos.gi
WhatsApp: +350 200 78841
We Will Do Our Best To Attend Your Enquiry Within 24 Hours!
