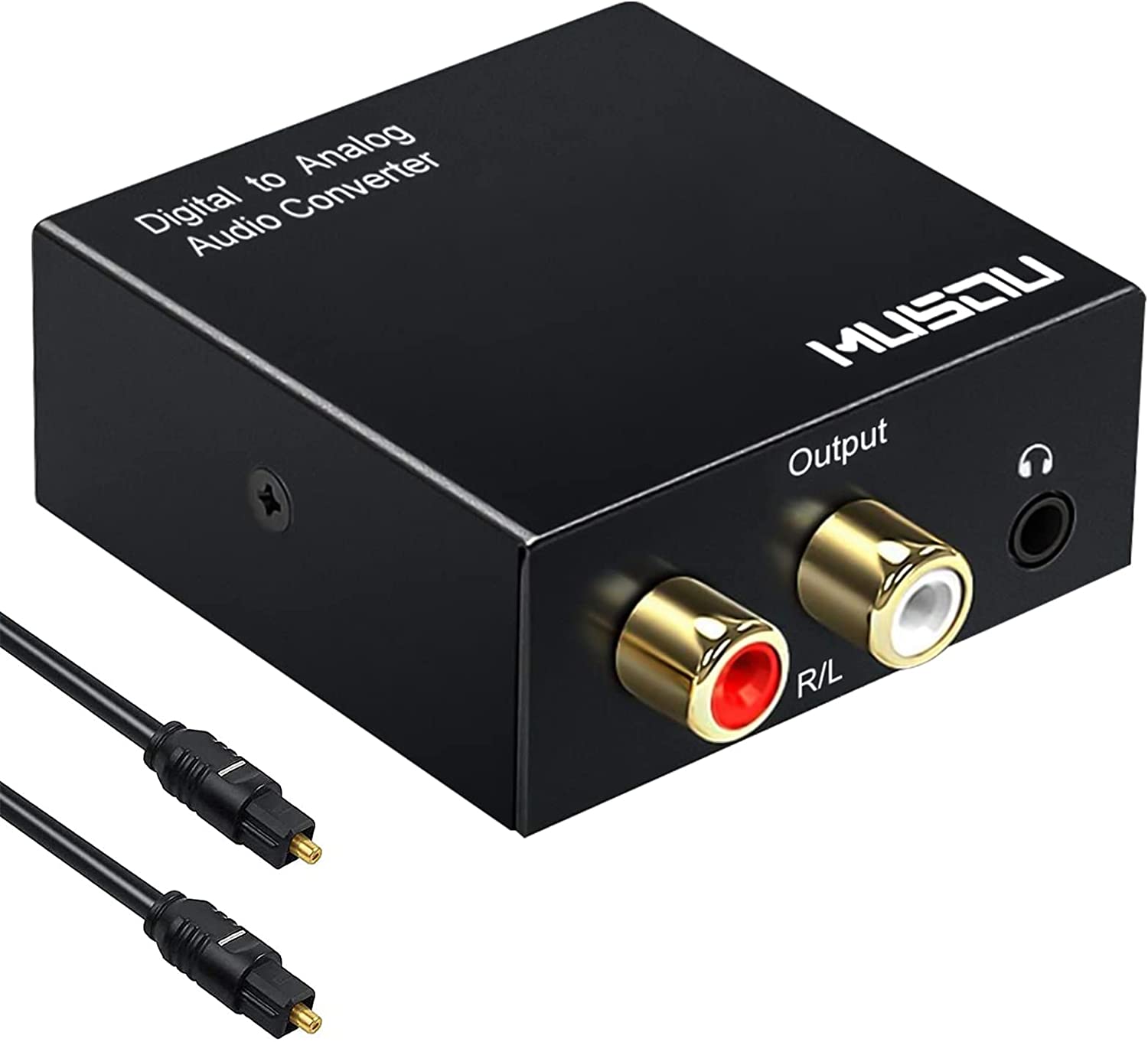

Musou Digital to Analog Converter

Musou Digital to Analog Converter

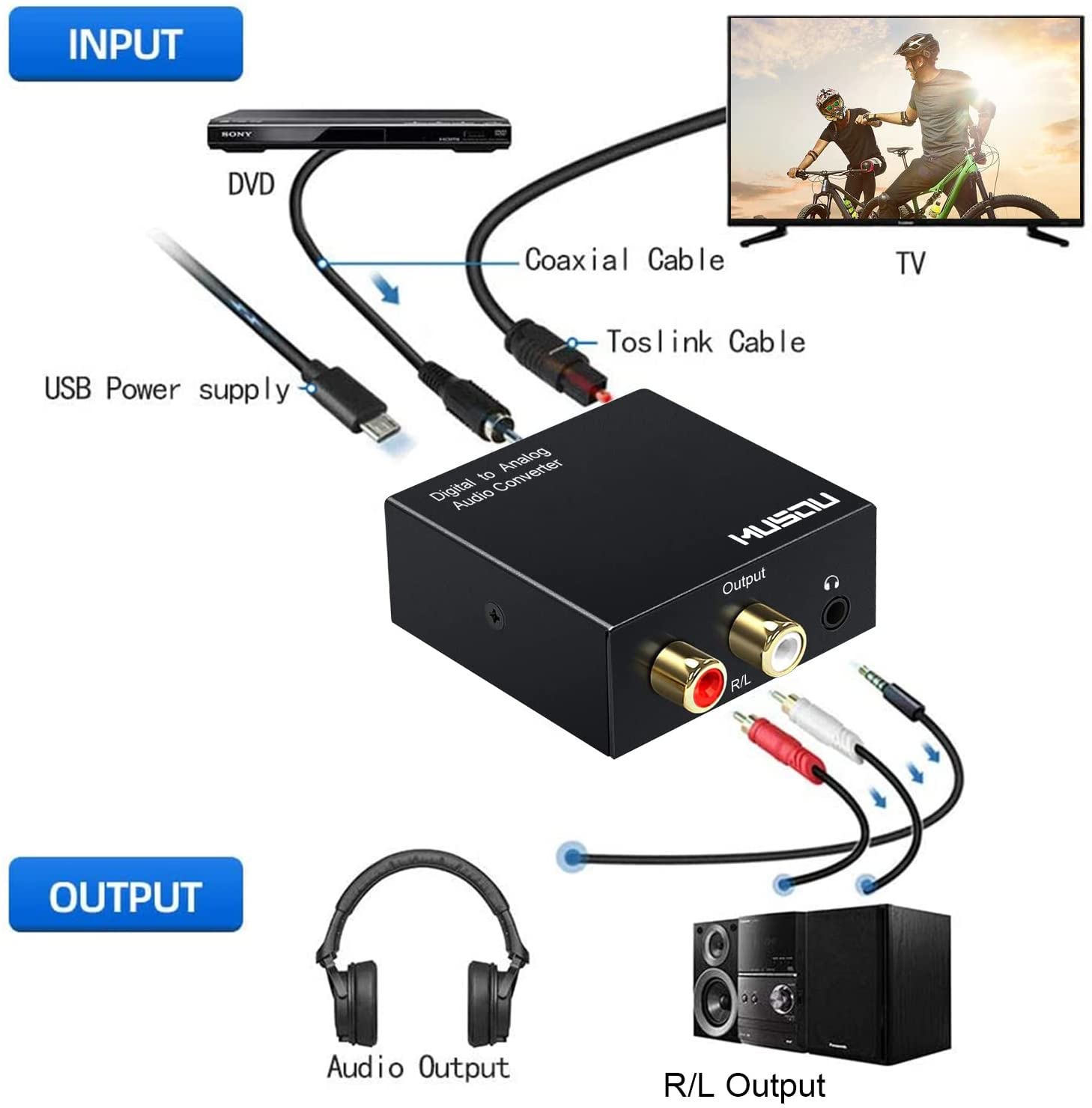

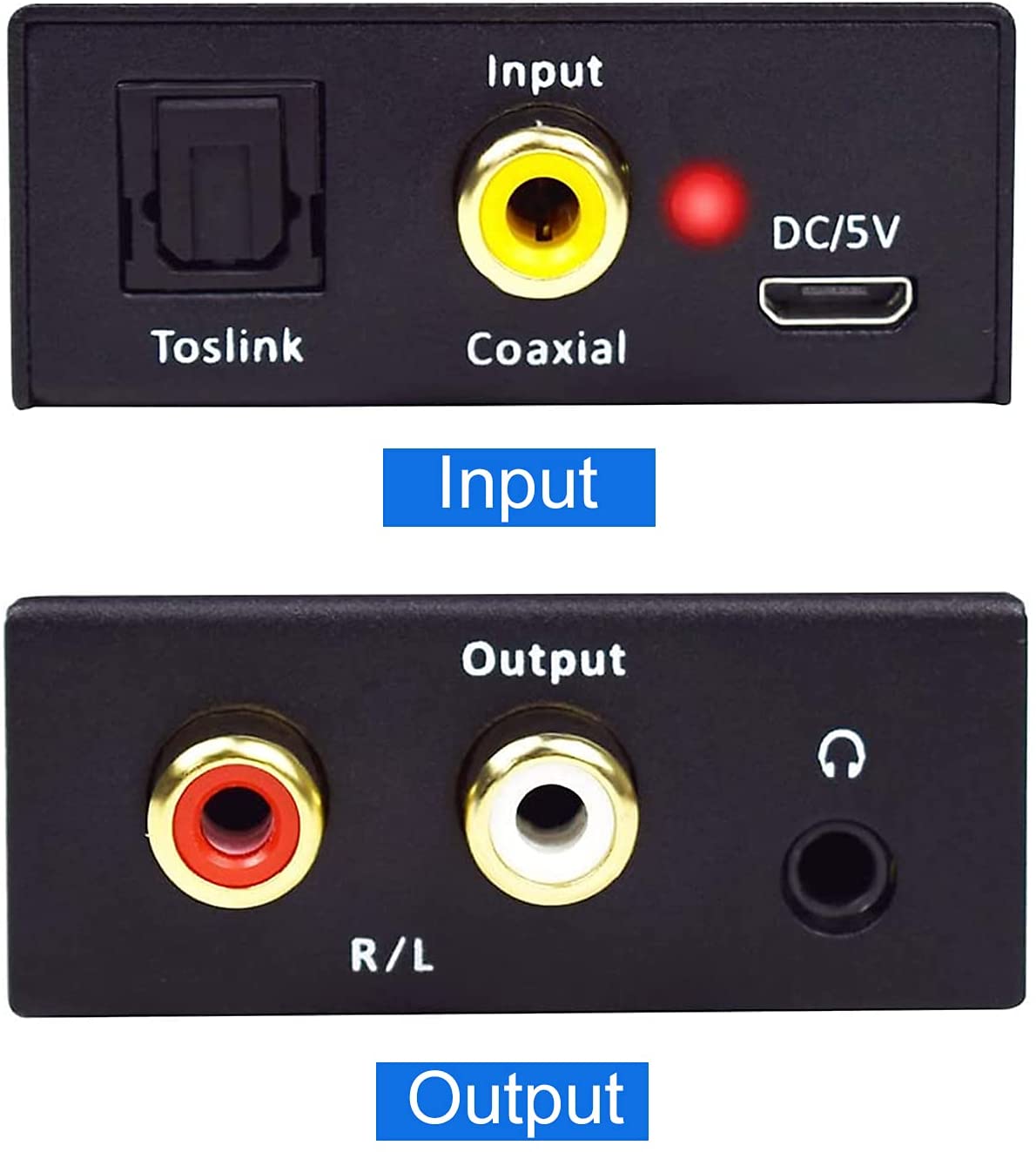

• Input: A Toslink and a Coaxial port, which can be connected to smart tv, PS4, bule-ray DVD or a tv box
• Output: RCA R/L port which can be connected to Amplifier, Speaker, headphone. And a 3.5mm audio output interface can be connected to your headphone.
• (When the device has both toslink and coaxial interfaces, it is recommended to select the toslink as input)
• Actually supports sampling rate at 24bit/192kHz
• Aluminum Metal case, lightweight and compact. Good anti-interference function makes the sound pure and clear

This Converter comes with Metal Shell, lightweight and compatible, supporting 192KHz/24Bit sampling rate, can easily convert coaxial or toslink Interface to RCA Analog Audio Interface and connects to an external device such as an amplifier via 3.5mm Headphone Jack.

Specification:

Support Audio Format: PMC/LPCM

Signal-to-Noise Ratio: 105DB

Separating Degree（1KHZ）: 94DB

Response Frequency: 20Hz~20KHz -0.2db

THD+N: -90DB

Total Harmonic Distortion(THD): 10Hz~20KHz 0.25-0.065%

Blocking Time: 0.577Fs

Sampling Rate: 32~192 KHz

Bit Rate: 16~24 Bit

Note:

The adapter is incompatible with 5.1 Channel Signal such as Dolby AC3, please set the audio output to PCM or LPCM before using the product.

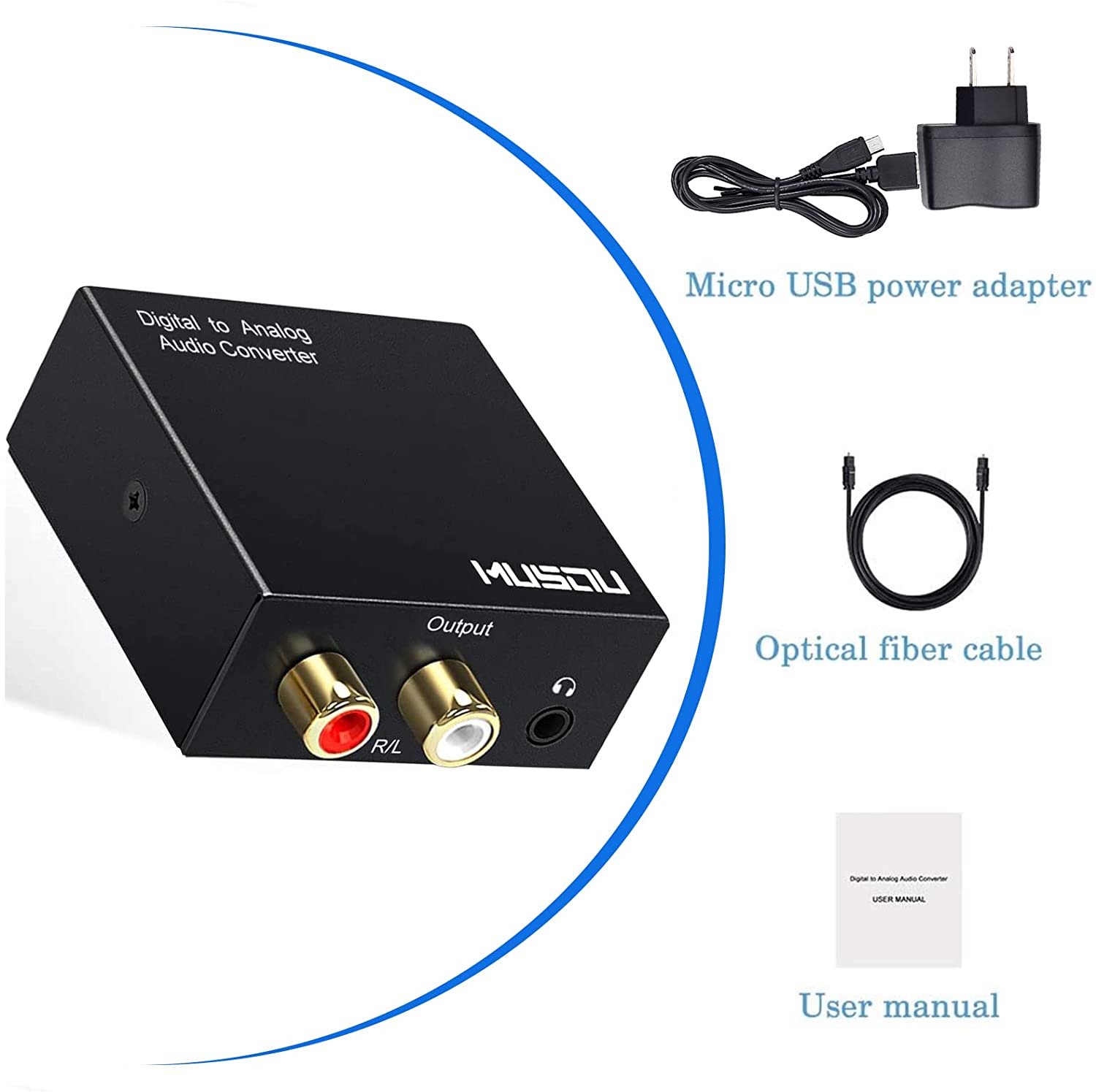

What you will get:

1x Musou 192kHz DAC converter

1xusb

1x optical cable
